Description
Performance and Characteristics
Mainly used for power transmission and transformation project(including underground power cable engineering), telecommunications, telecommunications engineering construction tower erection, traction cable, tighten the wire, lifting weights and toolds, especially suitable for small batch operations within the city.

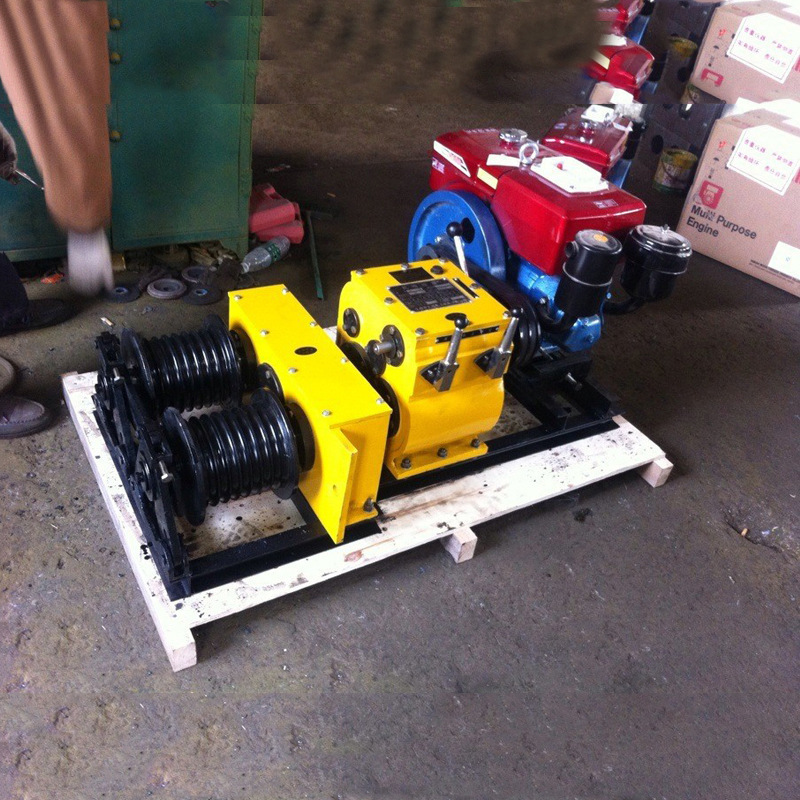

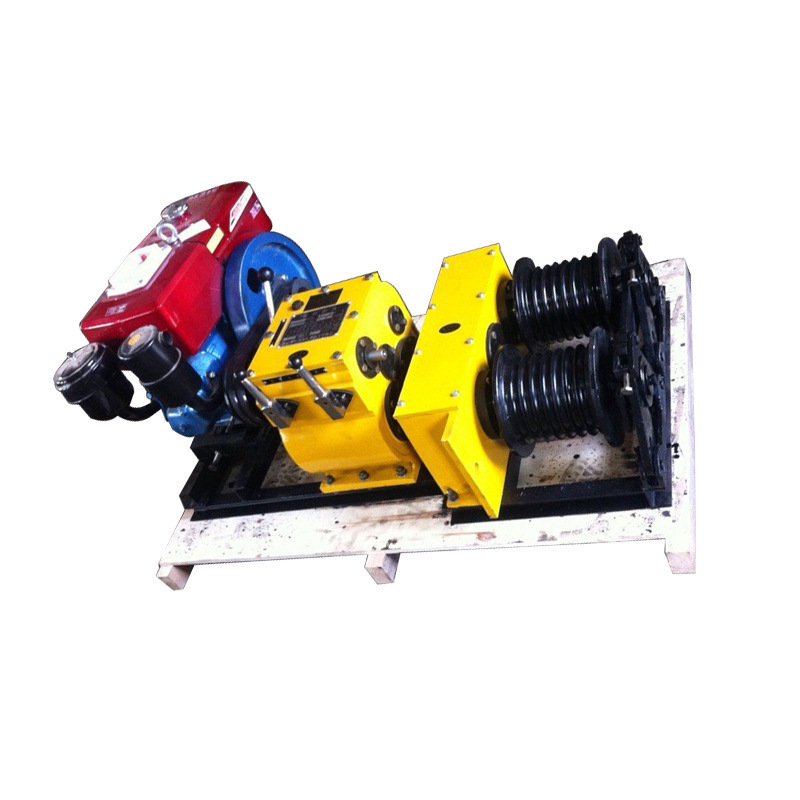

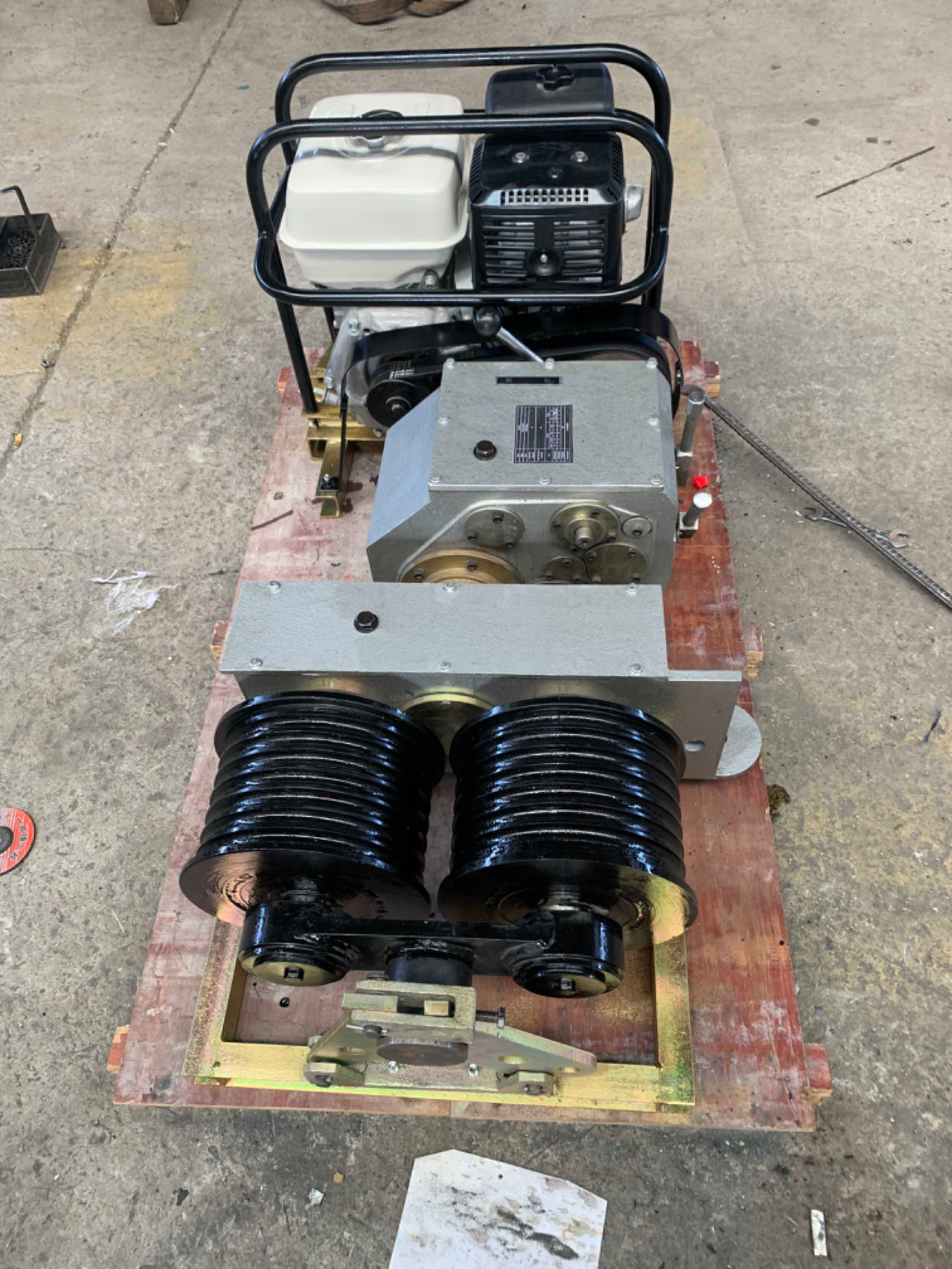

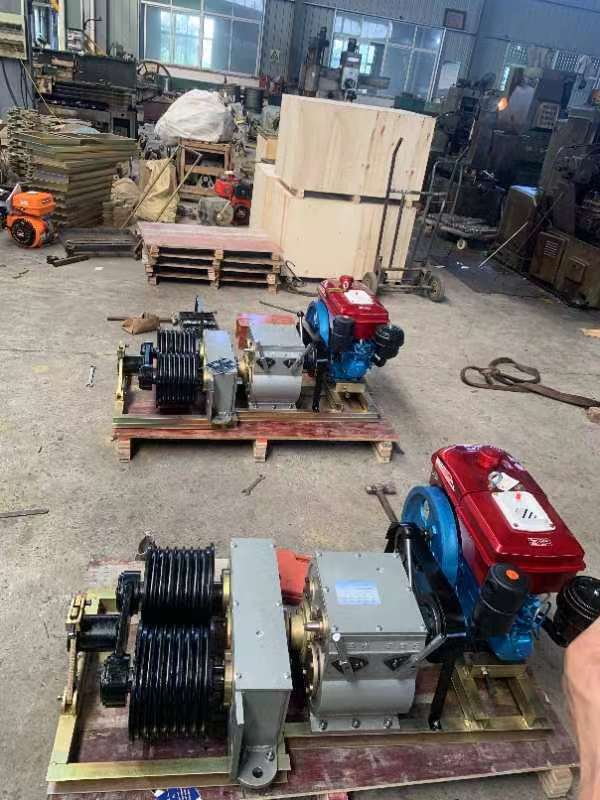

The 5T Double Drum Engine Power Winch is engineered for high-performance lifting and pulling tasks. This versatile winch features two drums, allowing for simultaneous operation and increased efficiency. It is available with multiple power options, including gasoline, diesel, and electric motors, making it suitable for various applications in construction and cable installation.
| Model | Rated Capacity | Traction Speed | Original Power | Weight |
| JM-5C-2 | 26kN | 18m/min | Diesel Engine | 160kg |
| 50kN | 9m/min | |||
| JM-5Q-2 | 26kN | 18m/min | Gasoline Engine | 140kg |
| 50kN | 9m/min | |||
| JM-5D-2 | 26kN | 18m/min | Electric Motor | 150kg |
| 50kN | 9m/min |
