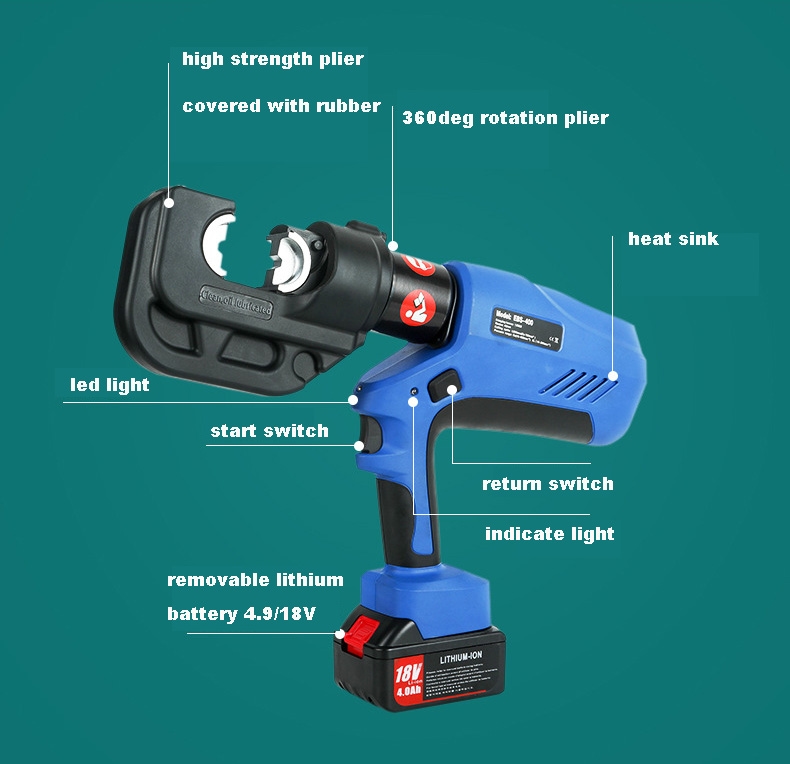

Electric Crimping Tool

Features:

Automatic Operation: Makes crimping easier and faster than doing it by hand.
Adjustable Force: Lets you set the right pressure for different materials, ensuring a strong connection.
Interchangeable Dies: Can be used with different attachments for various crimping jobs.
Speed: Works quickly, making it great for high-volume tasks.
Portability: Often lightweight and battery-powered, making it easy to use anywhere.
Safety Features: Includes things like overload protection to prevent damage.
Durable: Built to last, even with heavy use.
Ergonomic Design: Comfortable to hold and use, reducing strain on your hands.

Description

Item no	EZ-300	EZ-400
Crimping range	cu 16-300mm²	cu 16-400mm²
Crimping force	60kn	120kn
Stroke	17mm	42mm
Crimp/Charge	320times(CU 150mm²)	120times(CU 150mm²)
Crimping cycle	3-6s(depend on the size of cable	3-6s(depend on the size of cable

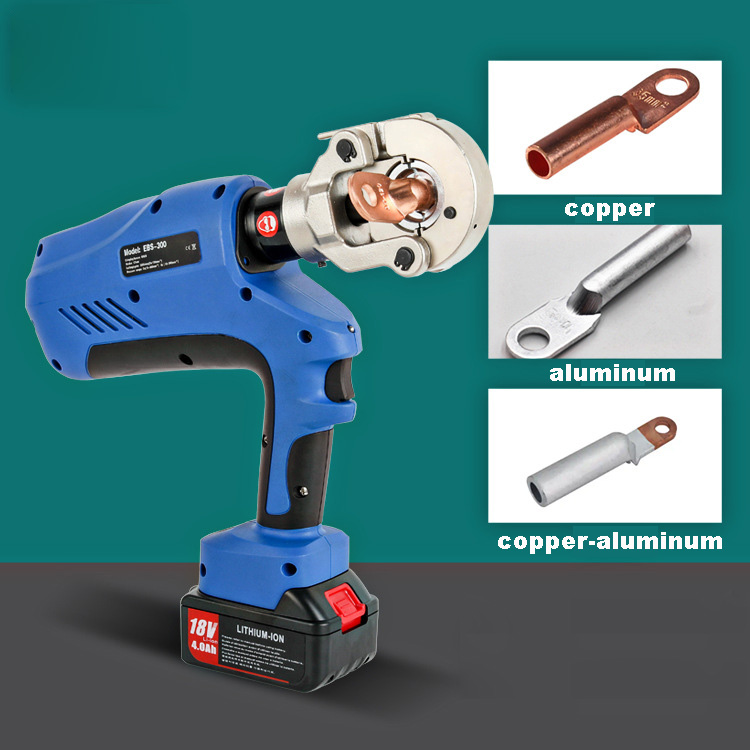

Crimping range	Copper 300mm² Aluminum 240mm²	Copper 400mm² Aluminum 300mm²
Battery	DC 18V 4AH lithium battery	DC 18V 4AH lithium battery
Charging time	2hours	2hours

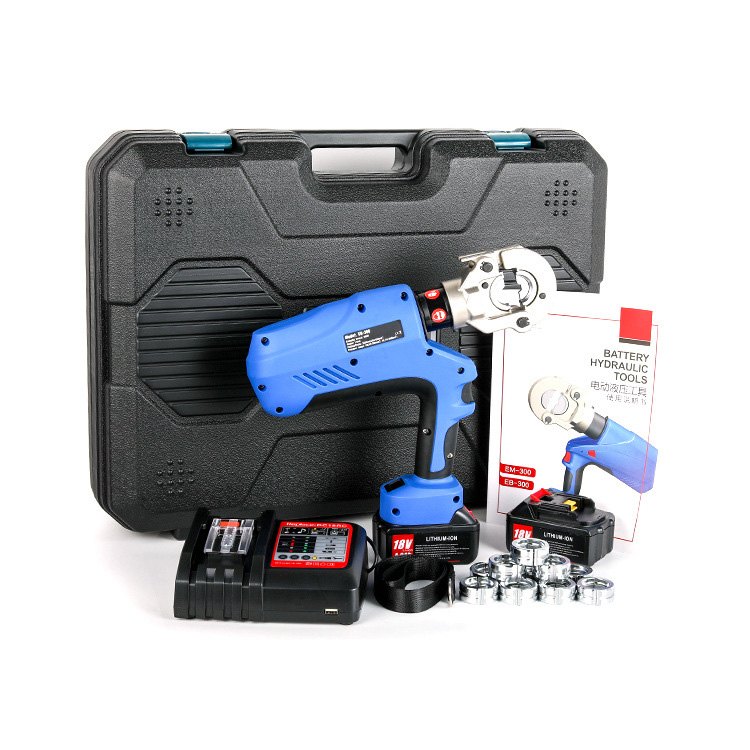

Accessory	2pcs batteries, 1pc charger, 1set mold	2pcs batteries, 1pc charger, 1set mold
Support mold	16,25,35,50,70,95,120,150,185,240,300mm²	16,25,35,50,70,95,120,150,185,240,300,400mm²
Weight	13kg	17kg
