Hydraulic Crimping Tool
Features:
- Hydraulic Power: Uses hydraulic pressure to create strong crimps, ideal for thick cables, ensuring secure connections.
- Wide Crimping Range: Comes with interchangeable dies for different cable sizes, usually ranging from 10mm² to 300mm².
- Durable Construction: Made from high-strength steel, ensuring durability for frequent use.

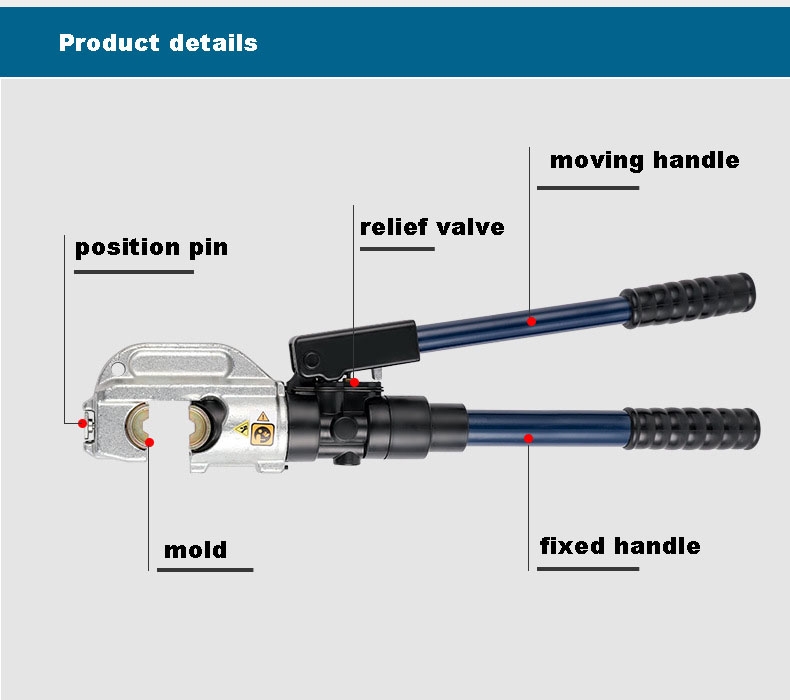

- Easy to Use: The handle design makes it easy to operate, and the hydraulic system reduces the effort needed compared to manual crimpers.

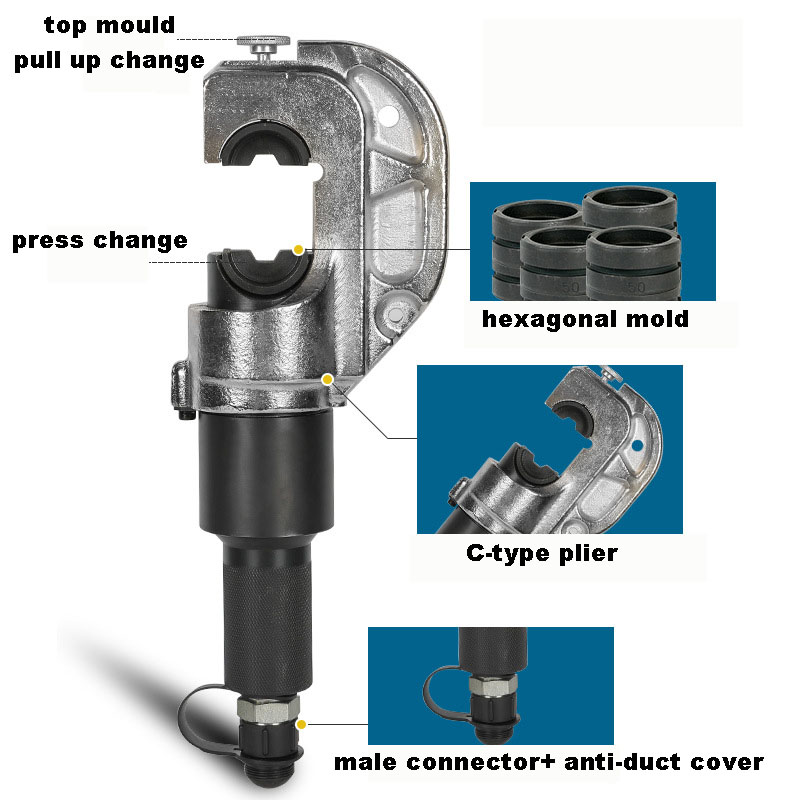

- Interchangeable Dies: Includes various dies that can be swapped out to fit different crimping needs.
- Safety Features: Equipped with safety valves to prevent over-crimping, protecting the tool and connectors.
- Portable Design: Often comes with a carrying case for easy transport and storage.
Product Category
- info@hwatian.com
- 0086 173 5252 6390
- Room 402, Unit 2, Building 6, No. 660, Huimin Community, Xiaodian Town, Hongqi District, Xinxiang City, Henan Province
Description
Specification:
| Item no: | EP-410 Split-up | EP-430 Split-up | EP-510 Split-up | EP-410 One-piece | EP-430 One-piece | EP-510 One-piece |
| Photo: |  |
|
|
 |
|
|
| Crimping range: | cu 35-300mm² | cu 50-400mm² | cu 50-400mm² | cu 35-300mm² | cu 50-400mm² | cu 50-400mm² |
| Crimping force: | 120kn | 120kn | 130kn | 120kn | 120kn | 130kn |
| Open distance: | 32mm | 32mm | 38mm | 32mm | 32mm | 38mm |
| Crimping type: | hexagon crimping | hexagon crimping | hexagon crimping | hexagon crimping | hexagon crimping | hexagon crimping |
| Weight | 4.3kg | 5.0kg | 5.8kg | 4.3kg | 5.0kg | 5.8kg |
| Crimping dies: | 35,50,70,95,120,
150,185,240, 300mm² |
50,70,95,120,
150,185, 240, 300,400mm² |
50,70,95,120,
150,185, 240, 300,400mm² |
35,50,70,95,120,
150,185, 240,300mm² |
50,70,95,120,
150,185, 240, 300,400mm² |
50,70,95,120,
150,185, 240, 300,400mm² |
| Hydraulic Oil | N/A | N/A | N/A | R32 lubricating oil 145cc | R32 lubricating oil 145cc | R32 lubricating oil 145cc |

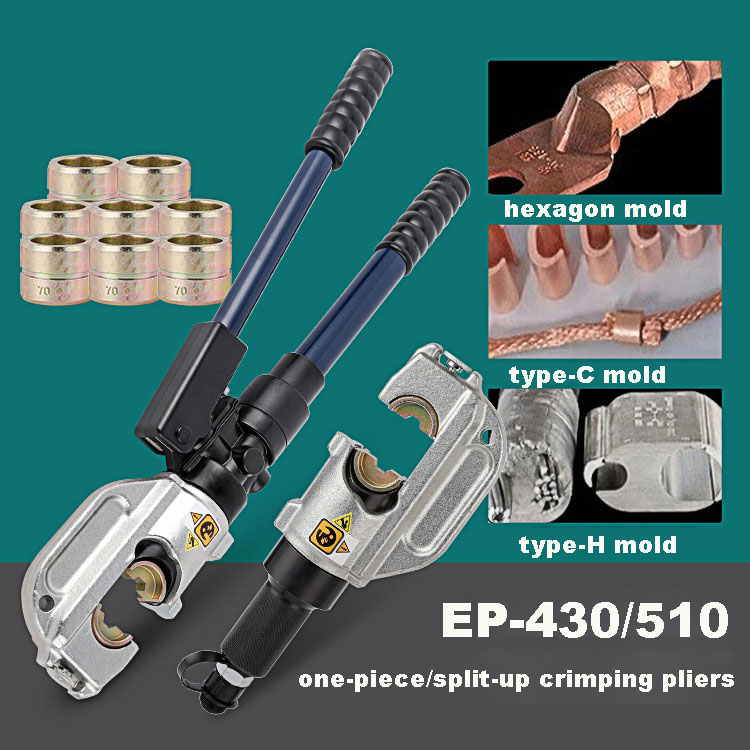

| Optional dies: | C-type mold | C-type mold | C-type mold and H-type mold | C-type mold | C-type mold | C-type mold and H-type mold |
| Recommend Pump | CP-180 or CP-700 or electric pump | CP-180 or CP-700 or electric pump | CP-180 or CP-700 or electric pump | N/A | N/A | N/A |
