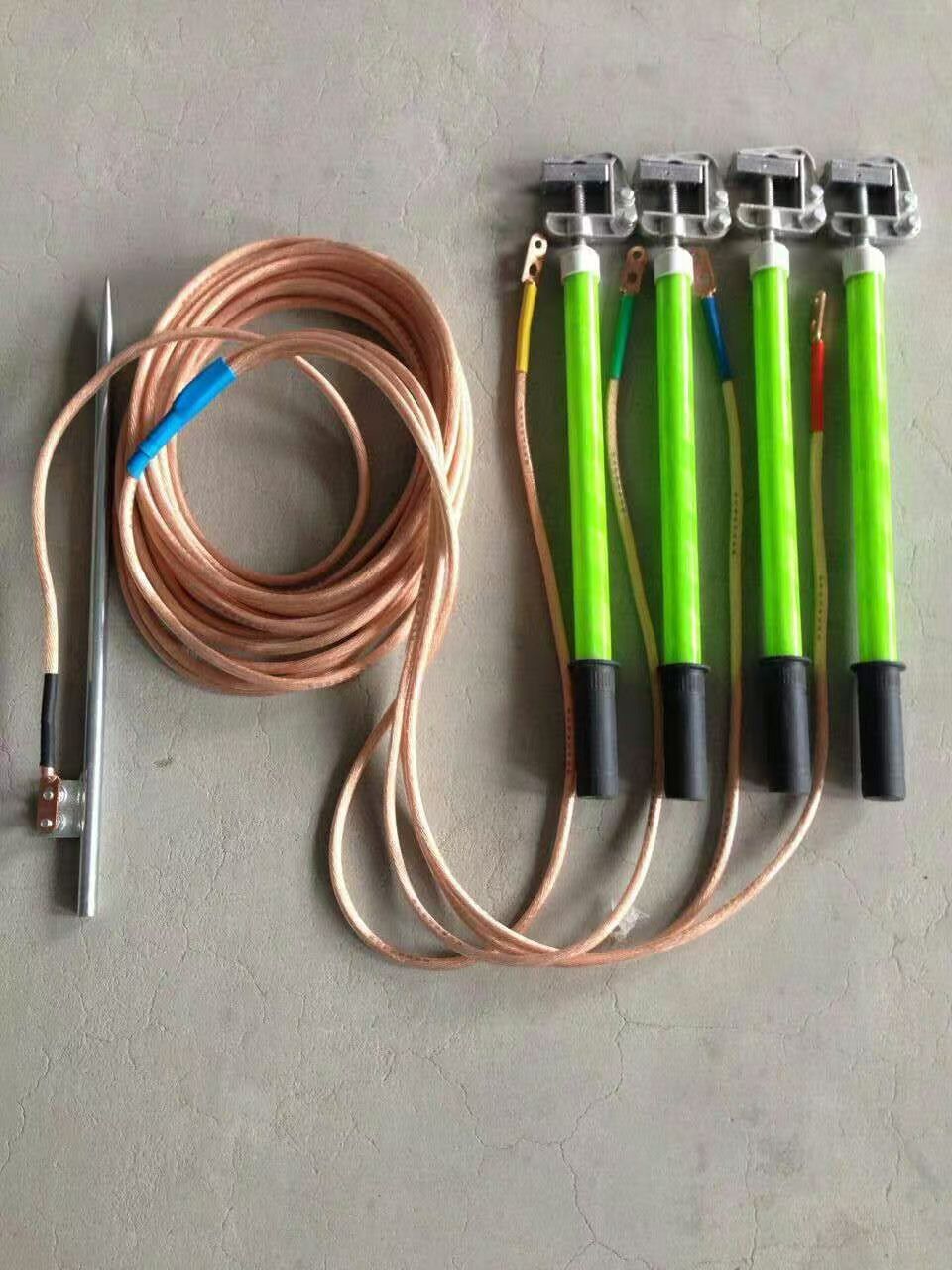

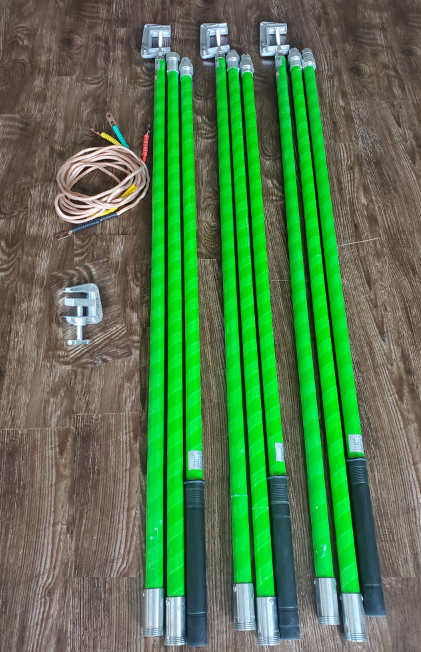

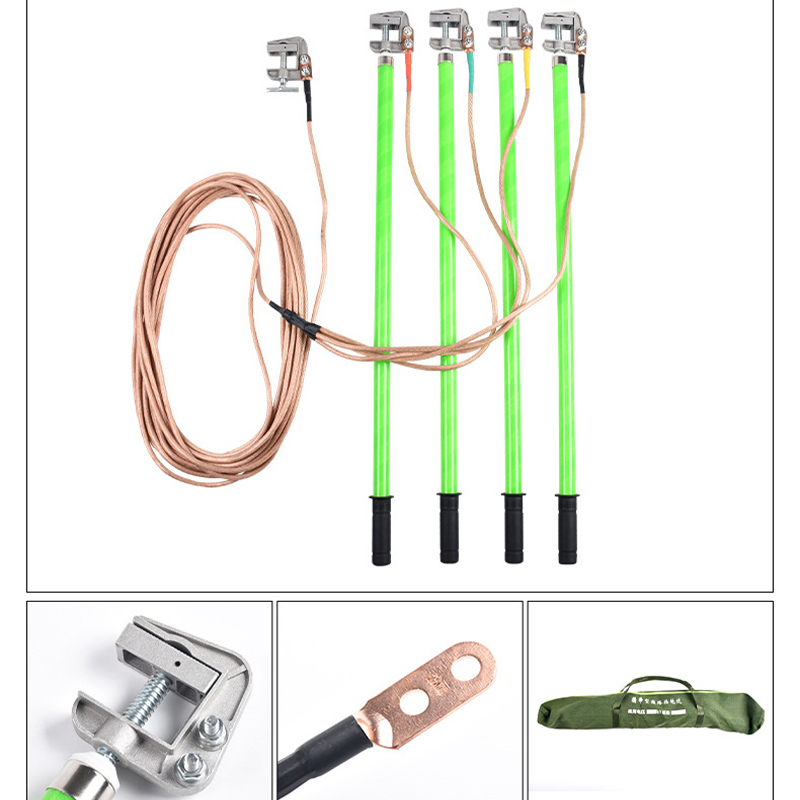

Portable Earthing Equipment（Combination Type)

Features & Applications

Features:

High Conductivity: Made of copper or alloy conductors to ensure efficient current discharge.
Voltage Resistance: Insulated with silicone rubber or epoxy for protection against high voltages (e.g., 10kV-500kV).
Durability: Reinforced with weatherproof, corrosion-resistant materials for harsh environments.
Safety Compliance: Equipped with visible markers and anti-slip clamps for secure, error-proof installation.
Flexible Design: Lightweight and portable, with adjustable lengths for diverse scenarios.

Applications:

Power Substations: Safely ground equipment during maintenance to prevent electric shocks.
Transmission Line Work: Discharge residual current from overhead lines before repairs.
Industrial Facilities: Protect workers during high-voltage system shutdowns or testing.
Railway Electrification: Ground overhead catenary systems for safe maintenance.
Renewable Energy Sites: Secure grounding in solar/wind farms during installation or fault handling.

Description

Specification:

Model	Voltage	Cable Size	Cable Length	Stick Length	Stick No.
EC-01	0.4kV	16mm²	3×1.5m+8m	0.5m	3pcs/set
EC-02	10kV	25mm²	3×1.5m+10m	1.0m	3pcs/set
EC-03	35kV	35mm²	3×1.5m+10m	1.5m	3pcs/set
EC-04	110kV	35mm²	3x2m+12m	2.0m	3pcs/set
EC-05	220kV	50mm²	3x2m+15m	3.0m	3pcs/set
support customized spec based on needs, like cable size, cable length and stick length
Grounding cable support 16mm²,25mm²,35mm²,50mm²,70mm²,95mm²,120mm²
