Description
Performance and Characteristics
Mainly used for power transmission and transformation project (including underground power cable engineering), telecommunications, telecommunications engineering construction tower erection, traction cable, tighten the wire, lifting weights and toolds, especially suitable for small batch operations within the city.

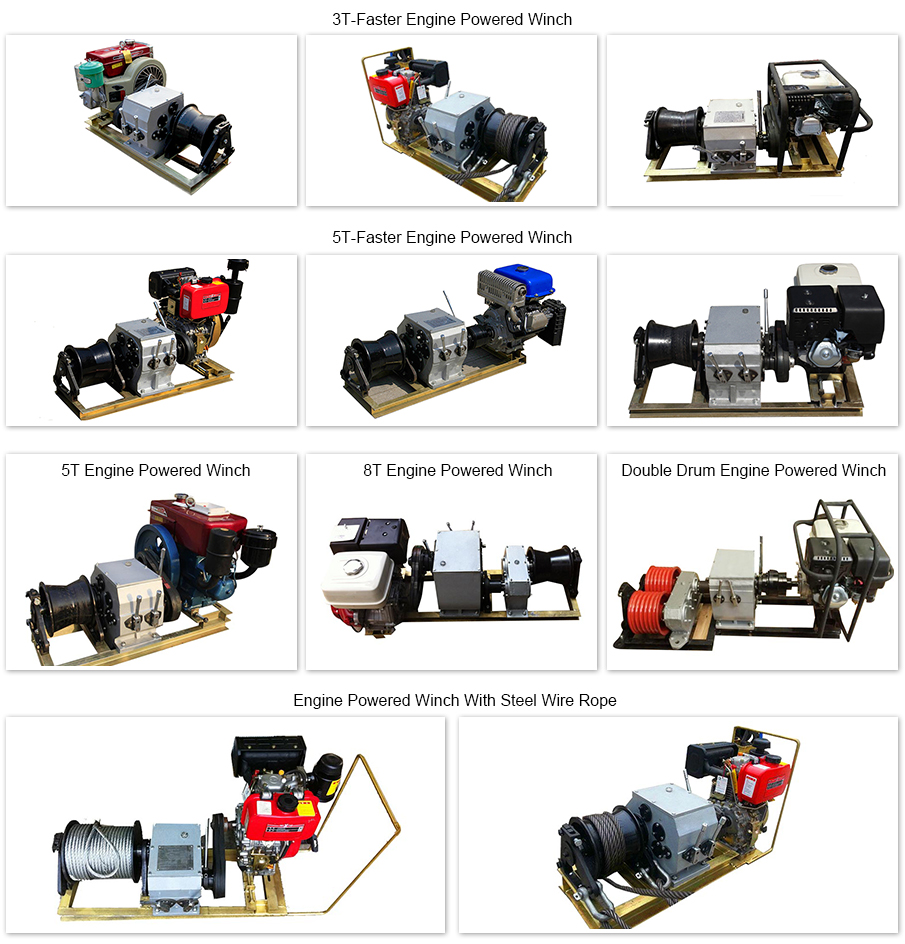

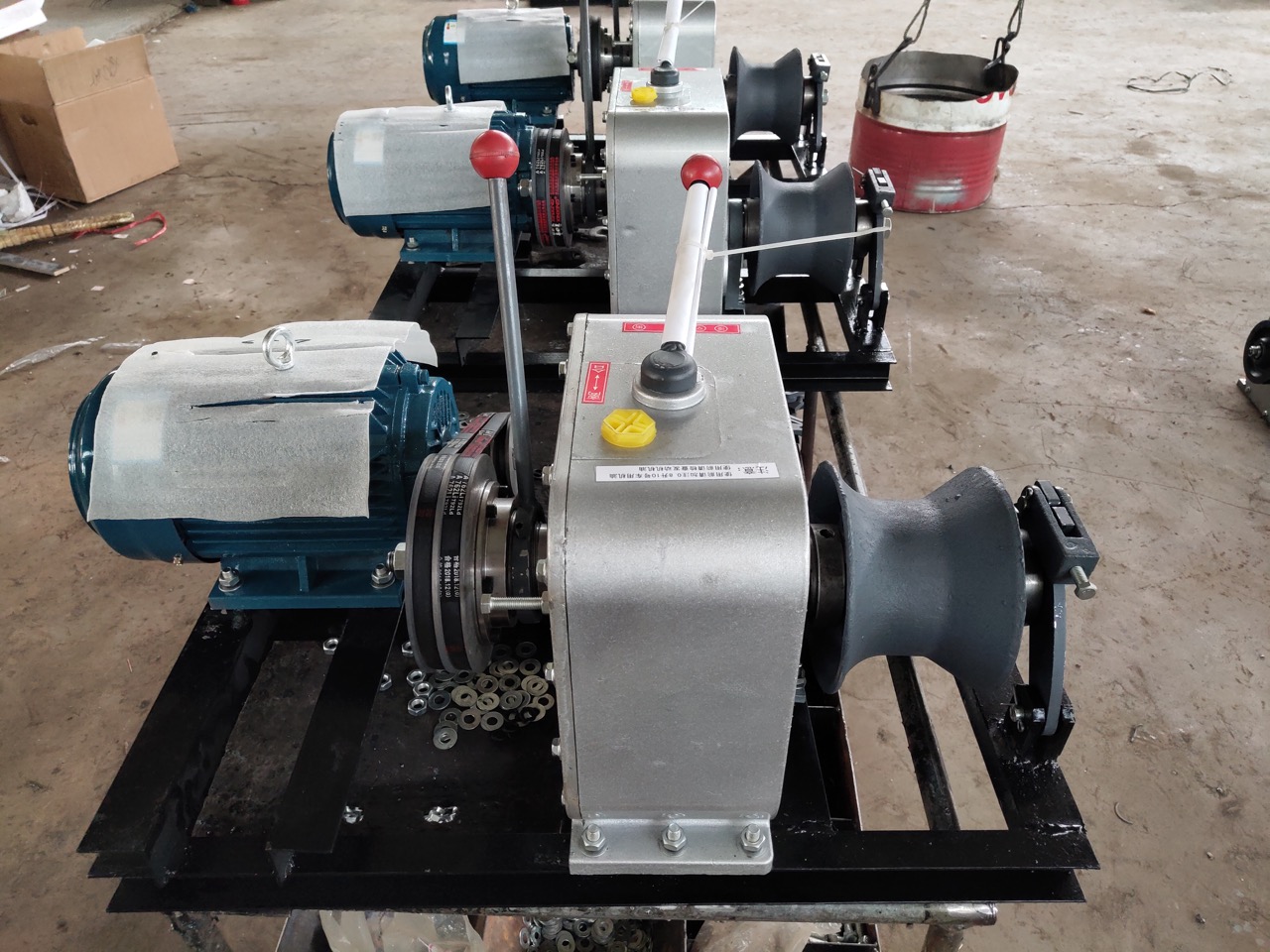

These winches are suitable for various power sources, including gasoline, diesel, and electric motors, making them versatile tools for any construction site.

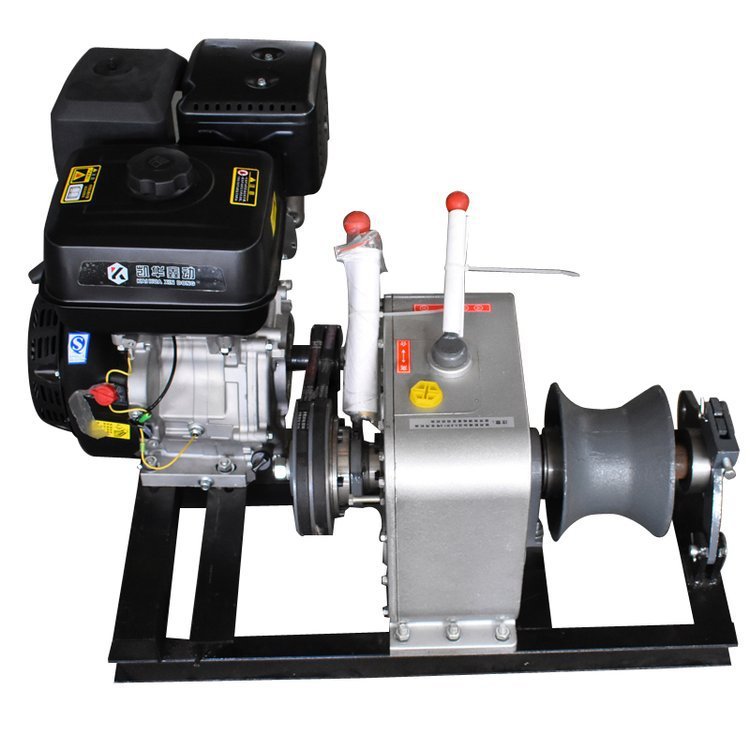

Gasoline Engine Can Choose Honda Brand, more easy for maintenance at local.
| Model | Rated Capacity | Traction Speed | Original Power | Weight |
| JM-3C | 12kN | 9.5m/min | Diesel Engine | 130kg |
| 30kN | 4m/min | |||
| JM-3Q | 12kN | 9.5m/min | Gasoline Engine | 115kg |
| 30kN | 4m/min | |||
| JM-3D | 12kN | 9.5m/min | Electric Motor | 120kg |
| 30kN | 4m/min | |||
| JM-5C | 18kN | 9.8m/min | Diesel Engine | 160kg |
| 50kN | 4.5m/min | |||
| JM-5Q | 18kN | 9.8m/min | Gasoline Engine | 140kg |
| 50kN | 4.5m/min | |||
| JM-5D | 18kN | 9.8m/min | Electric Motor | 150kg |
| 50kN | 4.5m/min | |||
| JM-8C | 35kN | 6.5m/min | Diesel Engine | 180kg |
| 80kN | 3m/min | |||
| JM-8Q | 35kN | 6.5m/min | Gasoline Engine | 165kg |
| 80kN | 3m/min | |||
| JM-8D | 35kN | 6.5m/min | Electric Motor | 170kg |
| 80kN | 3m/min |
