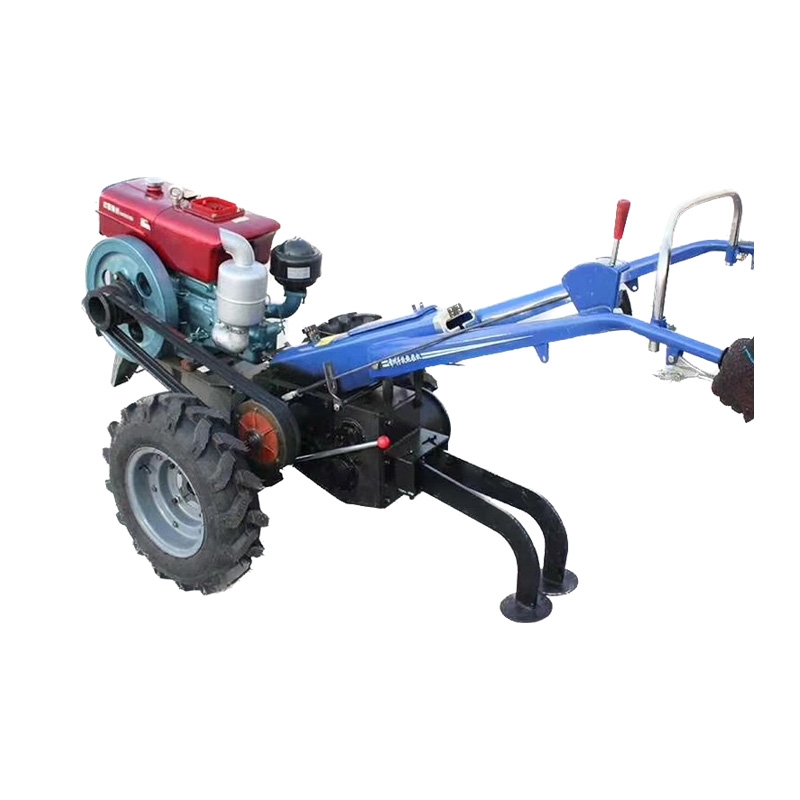

Walking Tractor Winch

Key Features:

  • It is suitable for mechanical wire laying and traction in power transmission and transformation lines, and can also be used for lifting operations.
  • It has its own walking device, and can be equipped with a towing box to carry heavy objects and other tools
  • The single drum model is modified from the Dongfeng 12 hand tractor, equipped with forward and reverse gears, and flexible to operate
  • The double drum model has 7 wheel grooves, which is convenient for traction and can protect the wire rope

Description

Specification

Walking Tractor Winch is specifically designed for heavy-duty pulling and lifting applications, making it an essential tool for agricultural, construction, and forestry tasks. This winch is powered by a reliable diesel engine, providing robust performance and efficiency.

Model Rotation direction Gear Rated Capacity
(kN)
Traction Speed
(m/min)
Ground Clearance
(mm)
Wheel Distance
(mm)
Travel speed
(km/h)
Rotational speed(RPM) Power Outline Size
(mm)
Weight
(kg)
Sinch Drum Walking Tractor Winch forwarder I 40.0 7.8 150 1040 3-13 2000 12HP 2670x1040x1300 450
II 27.0 13.6
III 17.0 25.0
IV 10.0 37.0
reversal slow No Lifting 4.8
fast No Lifting 15.2
Double Drum Walking Tractor Winch forwarder I 40.0 9.0 150 1040 3-13 2000 12HP 2670x1040x1300 500
II 27.0 15.0
III 17.0 27.0
IV 10.0 42.0
reversal slow No Lifting 6.0
fast No Lifting 18.0



Additional information

Model

Walking Tractor Winch

Capacity

4T

MOQ

1pc

Power

Diesel Engine

Payment Terms

L/C, T/T, Western Union

Warranty

1 Year Warranty

Shipping Way

By sea
