Cable Mesh Sleeves

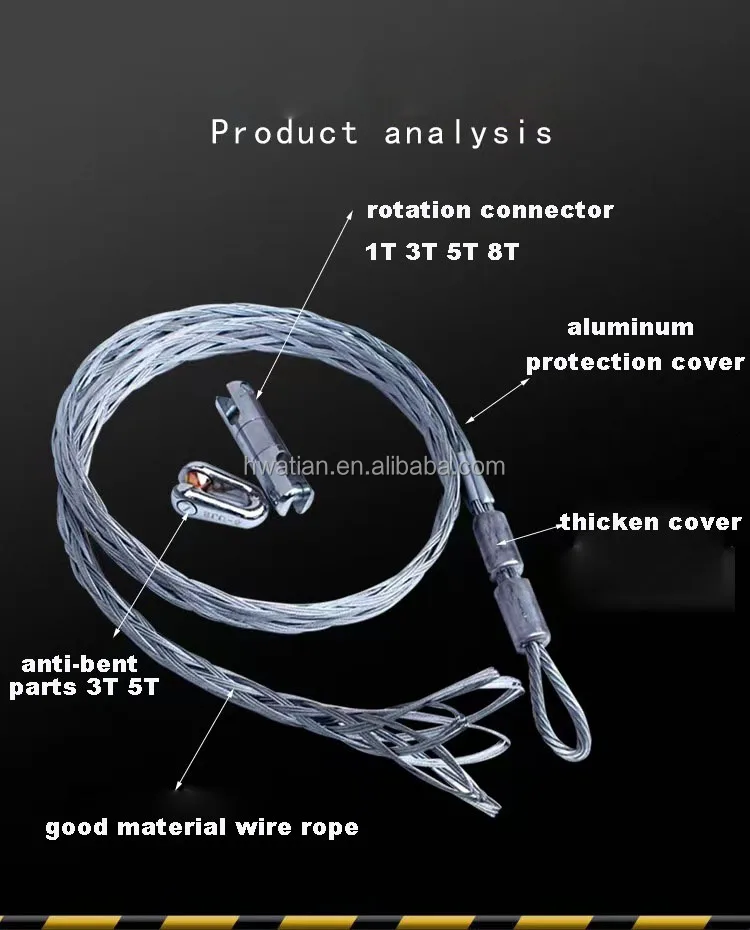

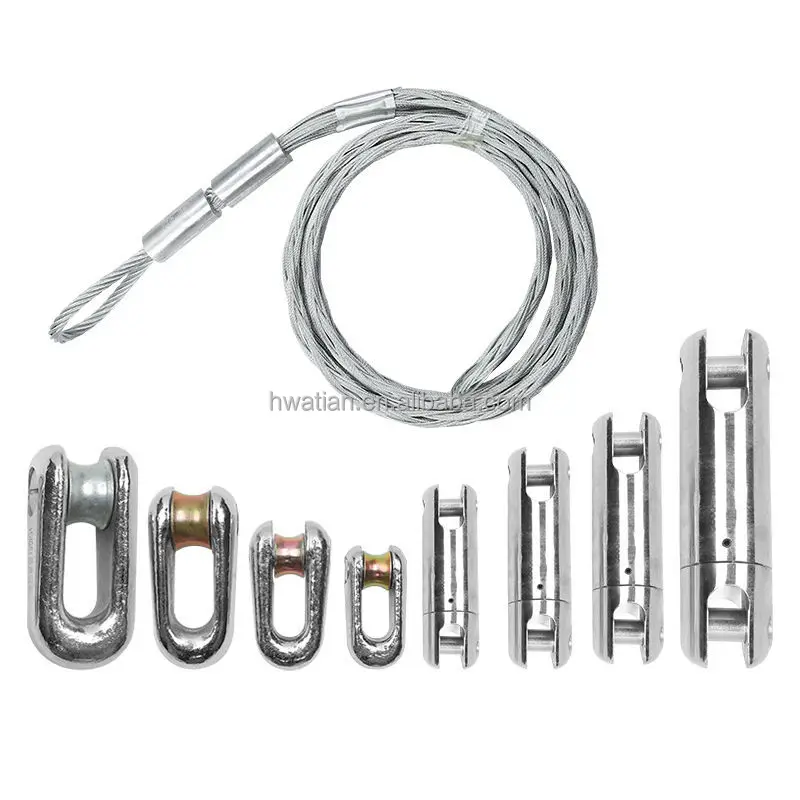

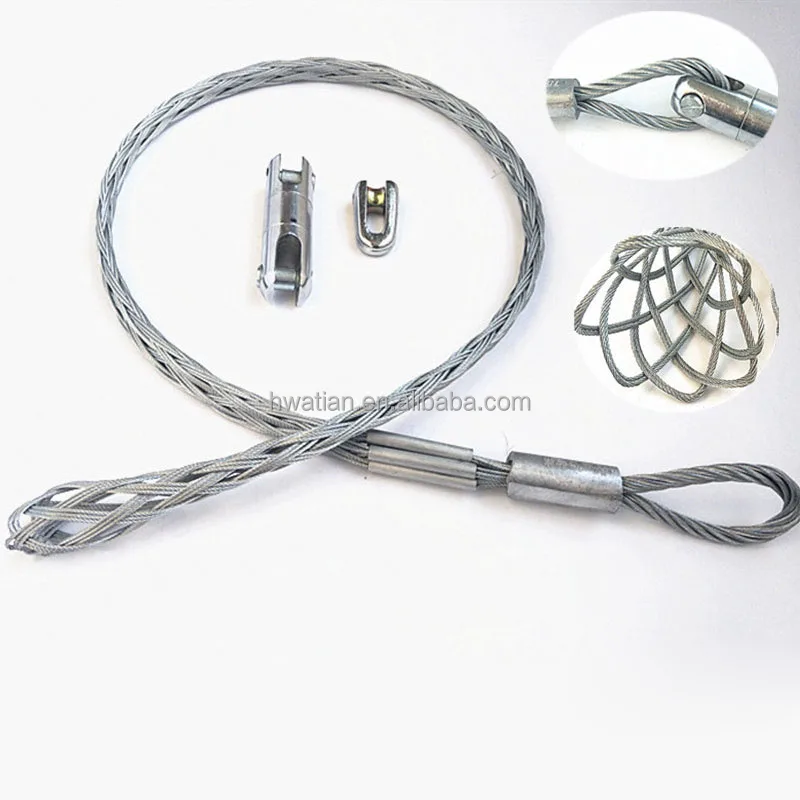

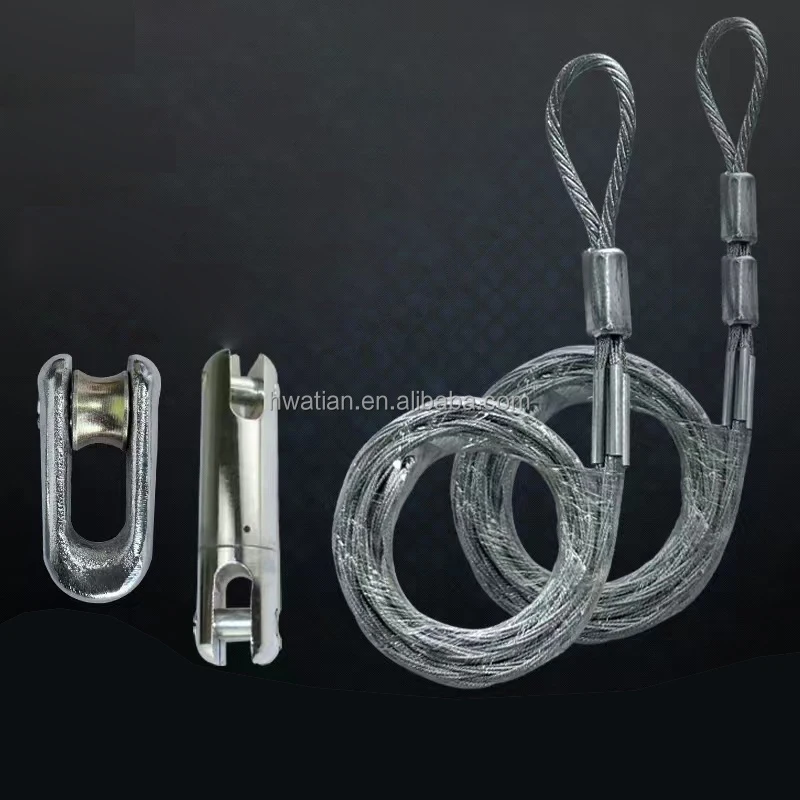

Wire Rope Pulling Joint Conductor & Cable Mesh Sock Joints with Rotation Connector for Wire Laying Construction
- Durable Protection: Shields cables from abrasion, cuts, and other mechanical damage.
- Flexibility: Allows easy bending and movement of cables without compromising protection.
- Tangle Prevention: Keeps multiple cables neatly bundled, reducing the risk of tangling.
- Heat Dissipation: The mesh design allows air circulation, helping to reduce heat buildup around cables.
- Easy Installation: Simple to apply and adjust over cables, saving time during setup.
- Aesthetic Appeal: Provides a neat and organized appearance, especially in visible installations.
- Expandable: Often expandable to accommodate different cable sizes and bundles.
Product Spec

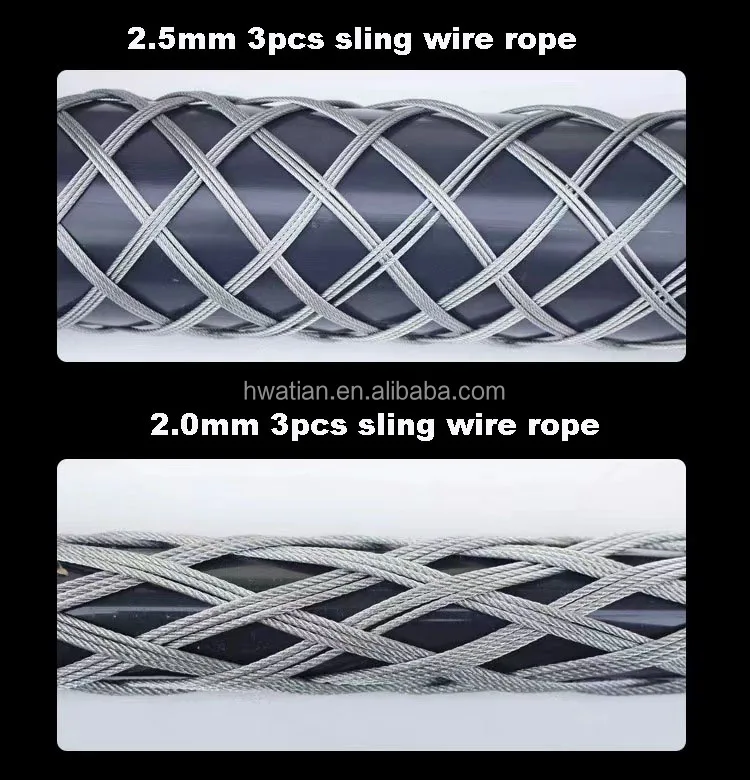

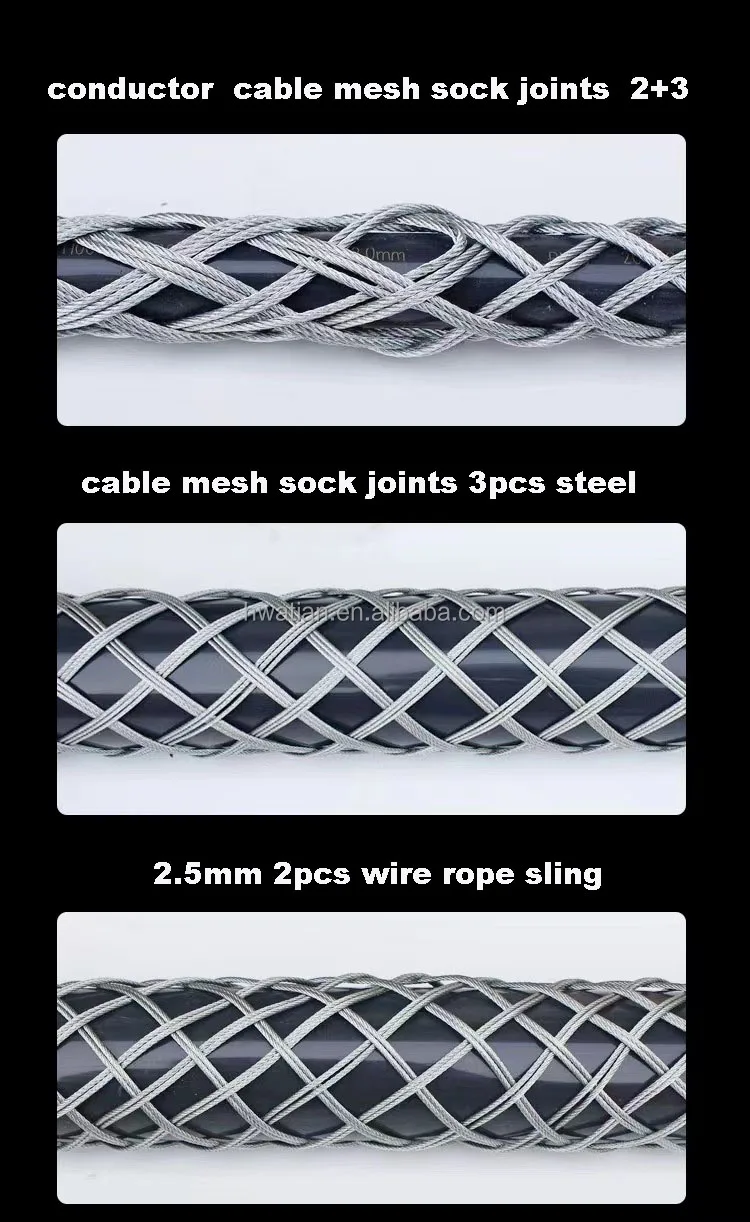

| Model | Length (m) | Spec | suitable cable dia. | Weight (kg) |
| Cable 25-50 | 1.2 | 2.0mm 3pcs wire sling | 30-50mm | 0.79 |
| Cable 70-95 | 1.4 | 2.0mm 3pcs wire sling | 50-60mm | 0.98 |
| Cable 120-150 | 1.8 | 2.5mm 3pcs wire sling | 60-80mm | 1.30 |
| Cable 185-240 | 2.2 | 2.5mm 3pcs wire sling | 80-100mm | 2.00 |
| Cable 300-400 | 2.8 | 2.5mm 3pcs wire sling | 100-120mm | 3.00 |
| Cable 500-630 | 3.0 | 3.0mm 3pcs wire sling | 120-140mm | 4.00 |
| conductor 25-50 | 1.2 | 2.0mm 3pcs wire sling | 15-20mm | 0.60 |
| conductor 70-95 | 1.5 | 2.0mm 3pcs wire sling | 18-25mm | 0.65 |
| conductor 120-150 | 1.7 | 2.5mm 3pcs wire sling | 20-30mm | 0.75 |
| conductor 185-240 | 1.9 | 2.5mm 3pcs wire sling | 24-33mm | 0.90 |
| conductor 300-400 | 2.0 | 2.5mm 3pcs wire sling | 27-37mm | 1.10 |

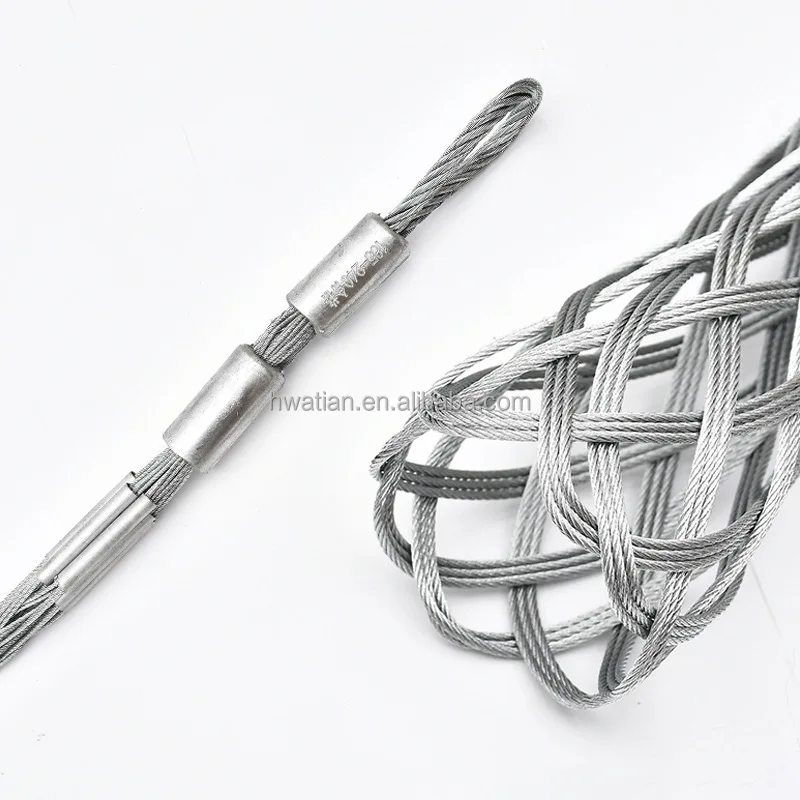

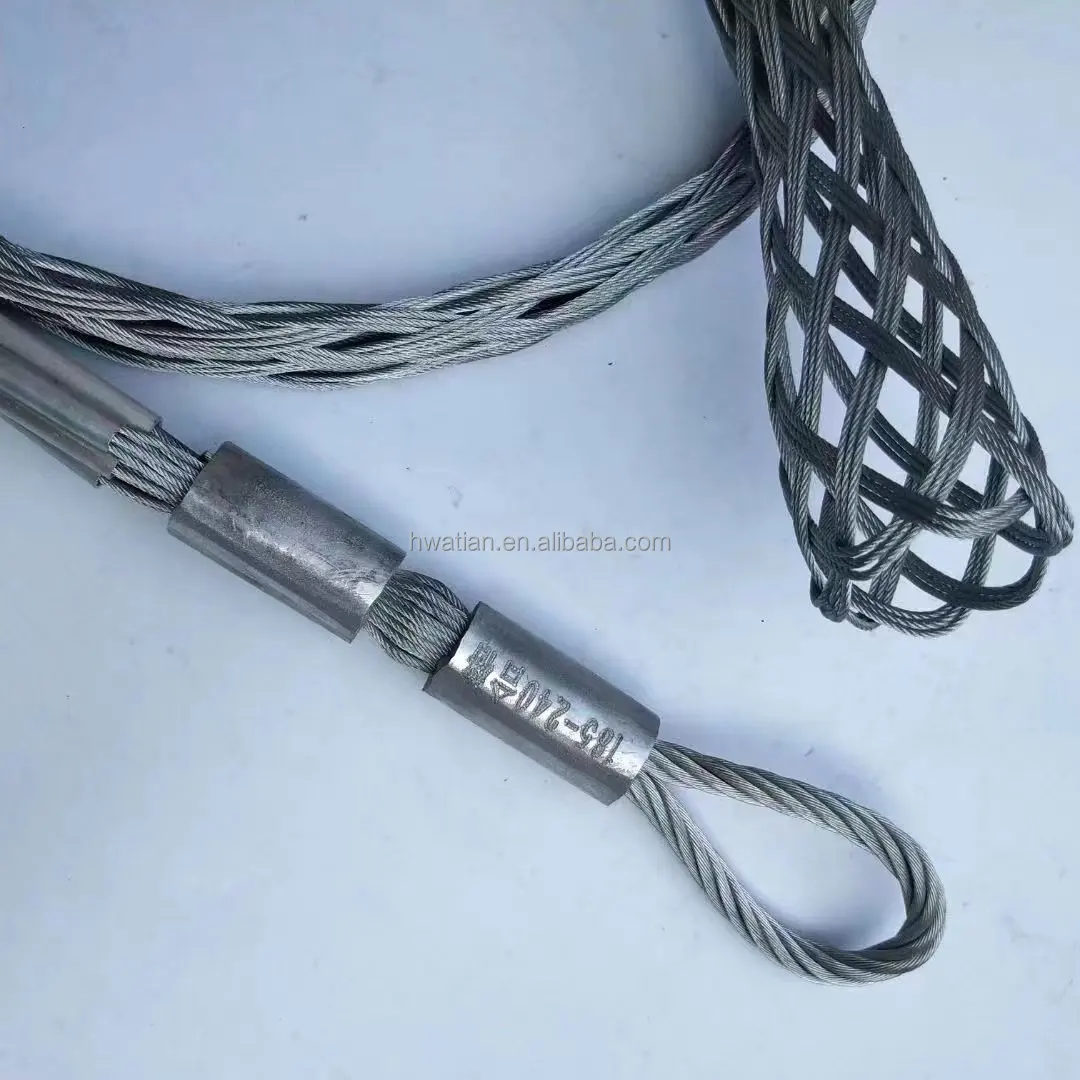

Detail Images
