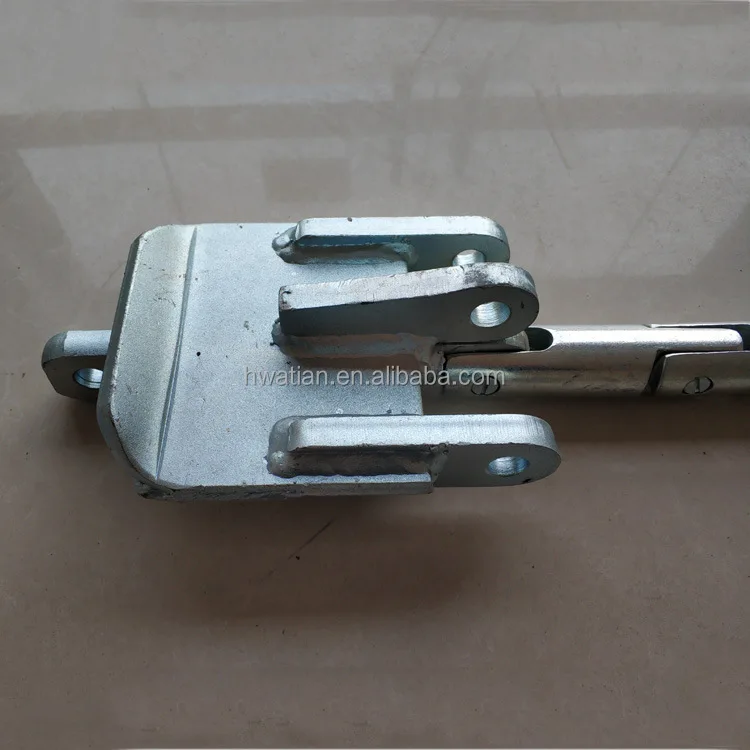

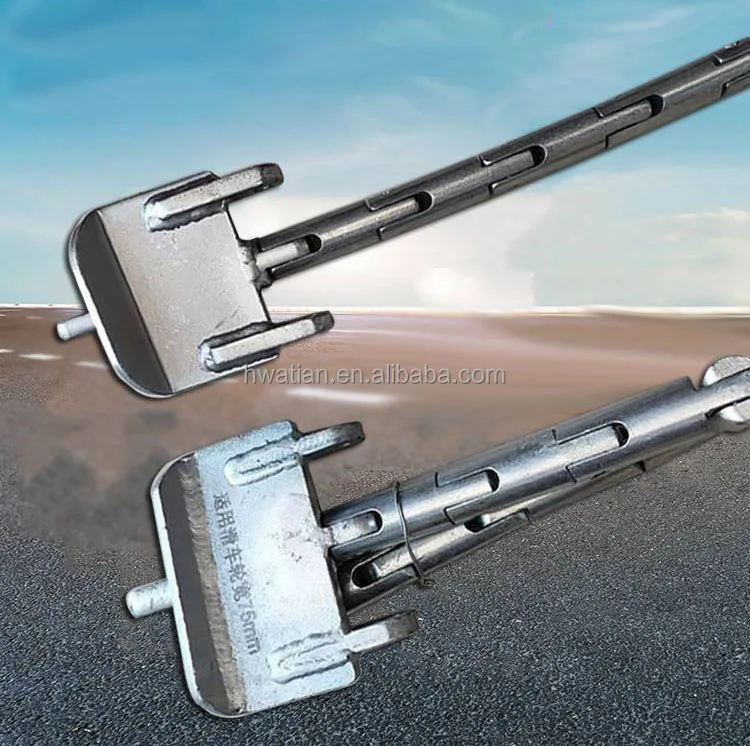

Head Board
Two/Three Bundles Conductor Indepent Running Head Board For Stringing Blocks Line Transmission
Features:
1. support nylon sheave and aluminum sheave
2. less weight and easy operate
3. differerent models for choose
4. protection cable avoid damage during pulling
Product Spec
| Model | Rated Load | Applicable Sheave Width (mm) | Weight (kg) | Feature |
| SZ2-8 | 80 | 75 | 17 | Conductor are independent |
| SZ2-8A | 100 | 19 | ||
| SZ2-8B | 110 | 19.5 | ||
| SZ2A-8 | 80 | 100 | 90 | Poising sheave |
| SZ2A-8T | 110 | 100 | Poising sheave | |
| SZ2B-13 | 130 | 110 | 55 | Conductor are independent |
| SZ2C-13 | 130 | 110 | 50 | |
| SZ2B-18 | 180 | 125 | 90 |
| Model | Applicable Stringing Block sheave Width(MM) | Rated load(KN) | Weight(KG) | Steel rop length |
| SZ3A-10 | 100 | 100 | 114 | 1*30+1*15 |
| SZ3A-13 | 110 | 130 | 130 | 1*30+1*15 |
| SZ3A-18 | 110 | 180 | 142 | 1*30+1*15 |
