Wire Gripper
A wire gripper, also known as a cable grip or wire rope grip, is a mechanical device used to grasp and secure wire ropes, cables, or similar flexible structures. Wire grippers are commonly used in various industries, including construction, telecommunications, utilities, and entertainment, for tasks such as lifting, pulling, tensioning, and supporting cables or ropes.
Wire rope gripper features:
Product is made of high strong carbon steel, surface with galvanized painting. The rack has strong anti-tension with high occlusion strength. It is not easy to slide and deformation.
Detail Specification
| Japanese Type Multifunction Wire rope Gripper | ||||
| Model | suitable wire rope Dia. | Rated loading capacity | Net Weight | Remark |
| HTDG5 | 1-10mm | 500kg | 0.4kg | galvanized high strong carbon steel |
| HTDG10 | 2.5-16mm | 1000kg | 0.8kg | |
| HTDG20 | 4.0-22mm | 2000kg | 1.4kg | |
| HTDG30 | 16-32mm | 3000kg | 2.5kg | |

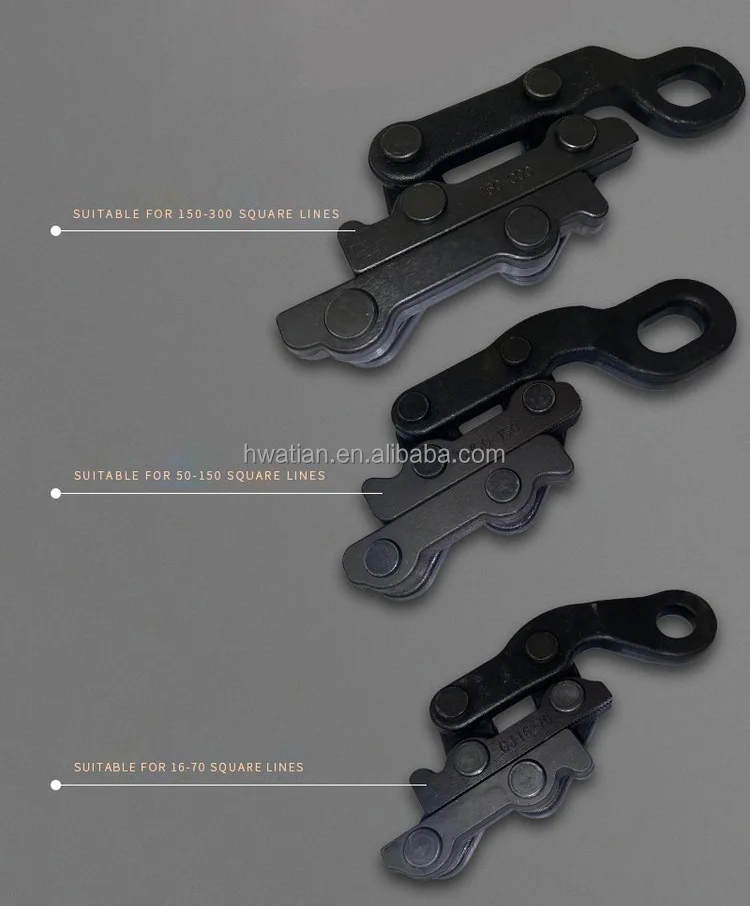

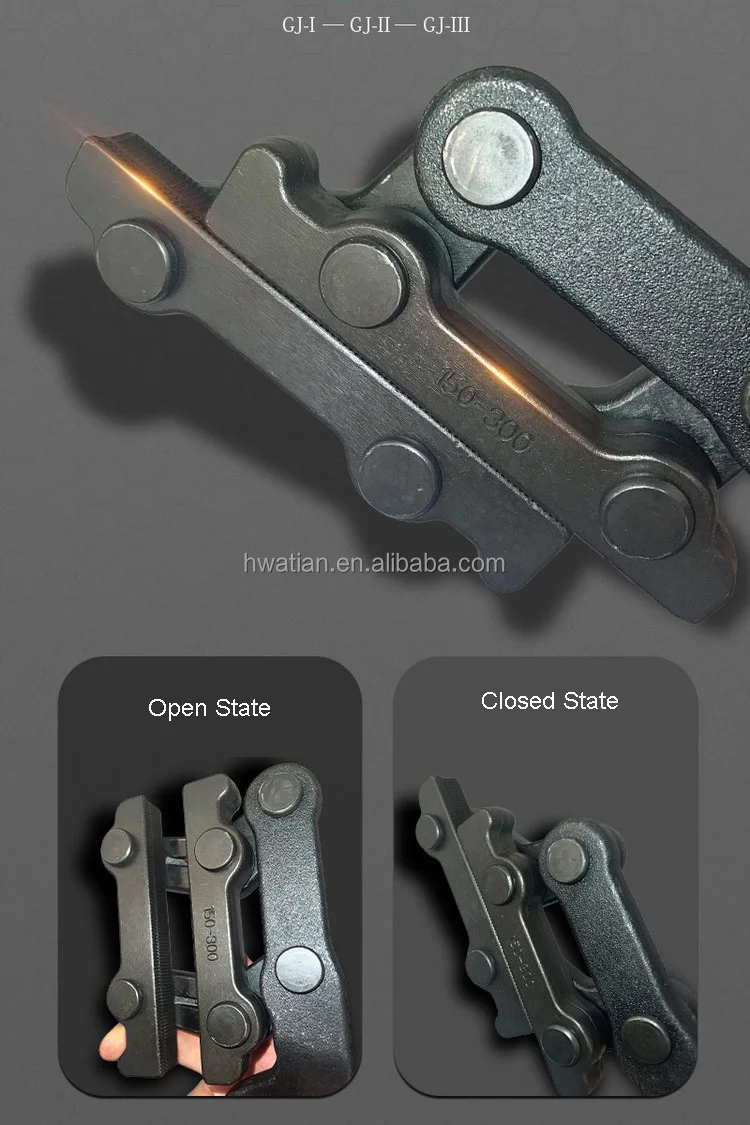

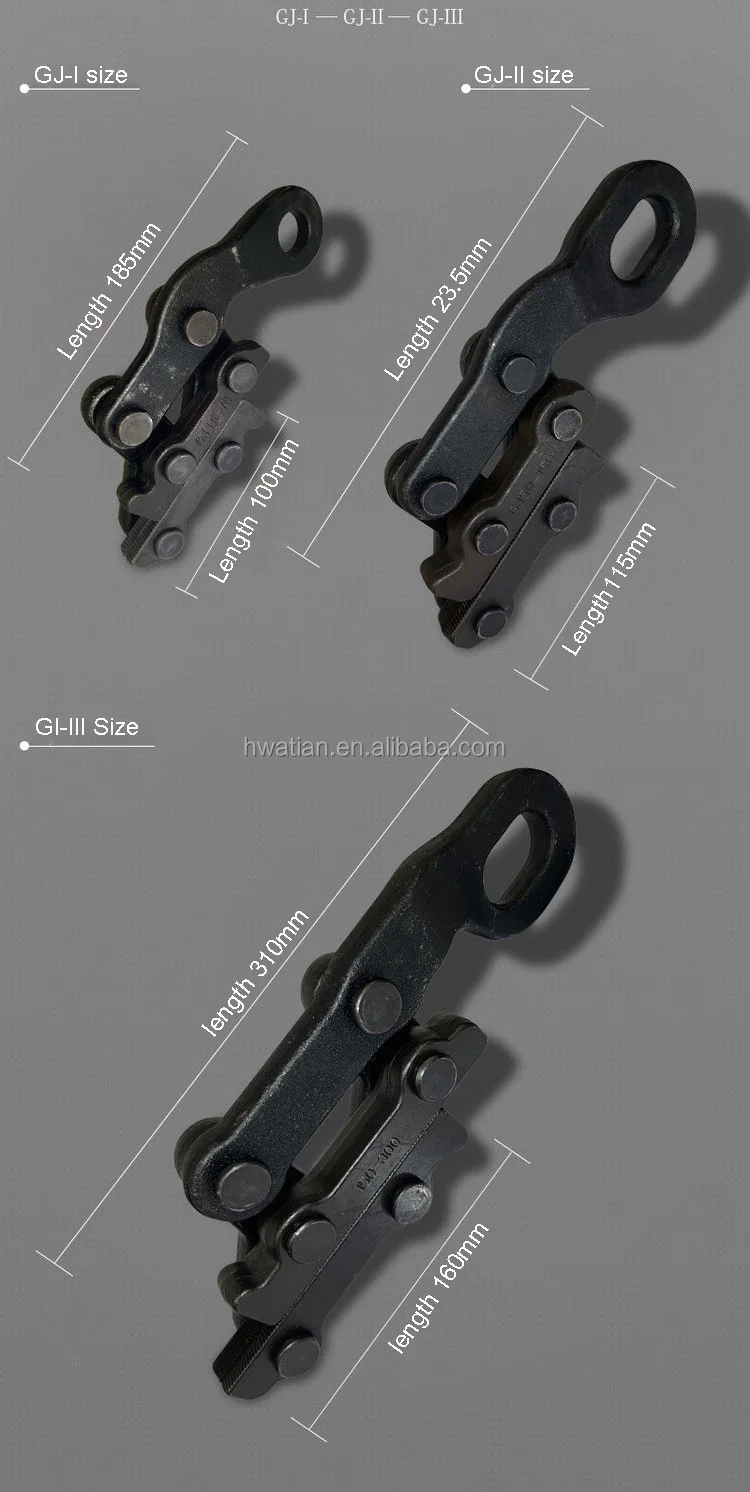

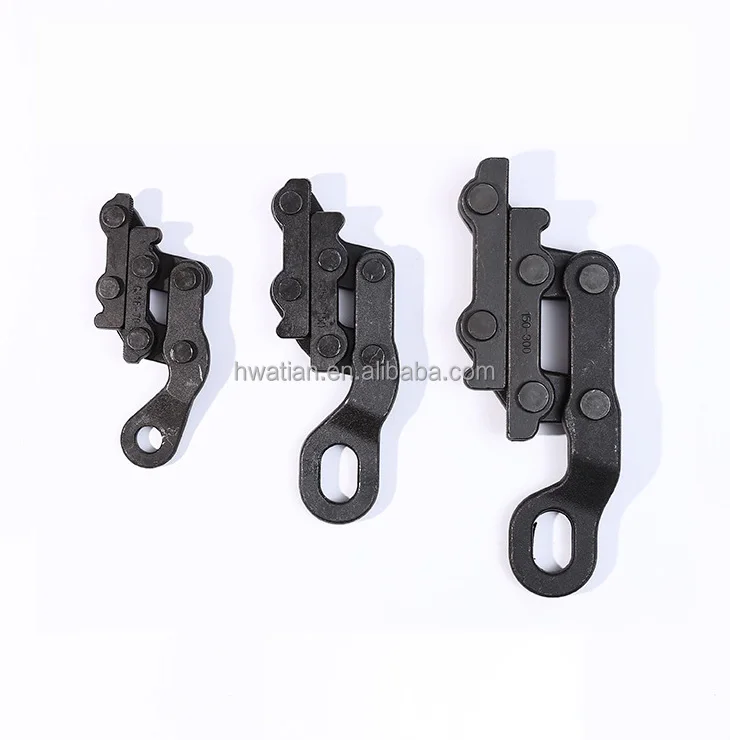

| German Type Parallel Earth Wire Gripper | ||||
| Model | suitable rope mm² | Rated loading capacity | Max Open | Net Weight |
| GJ-I | GJ-16-70 | 10kN | 13mm | 1.2kg |
| GJ-II | GJ-150-150 | 20kN | 18mm | 2kg |
| GJ-III | GJ-150-300 | 30kN | 26mm | 3.8kg |
