PA Electric Hoist
  • Capacity : 100kg, 200kg, 250kg, 300kg ,400kg ,500kg, 600kg, 800kg, 1000kg, 1200kg
    Lifting Height: 12M, MAX 30M
    Voltage:110V/220v
    Phase:1P
    Protection class: IP54
    MOQ: 1 piece is acceped

    Uses:
    suitable for the construction working site, crane, home lifting

    Advantage:
    1. compact dimensions
    2. Stable quality

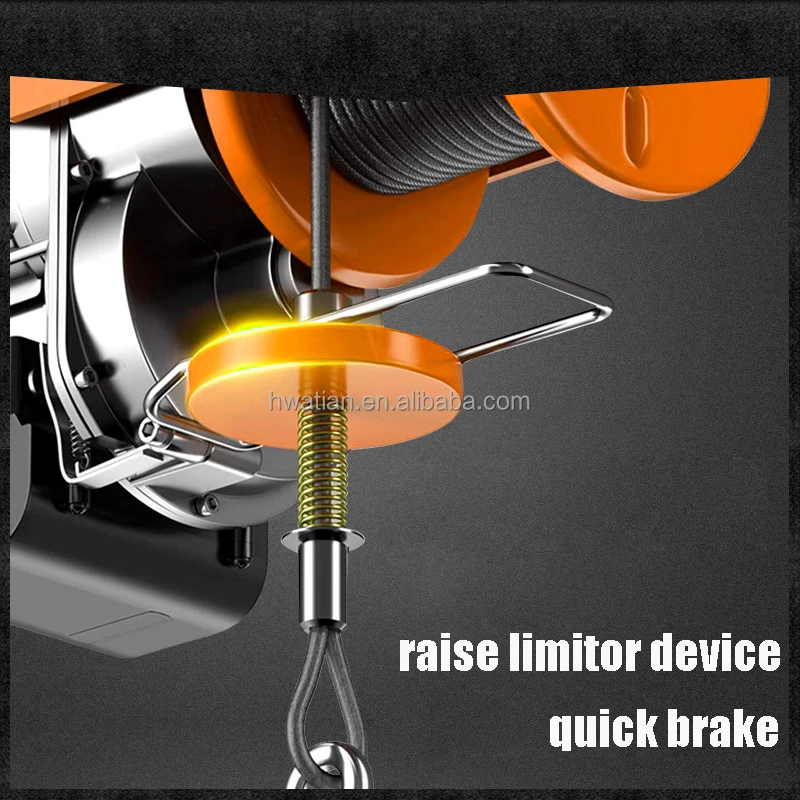

    3. stop working will brake auto

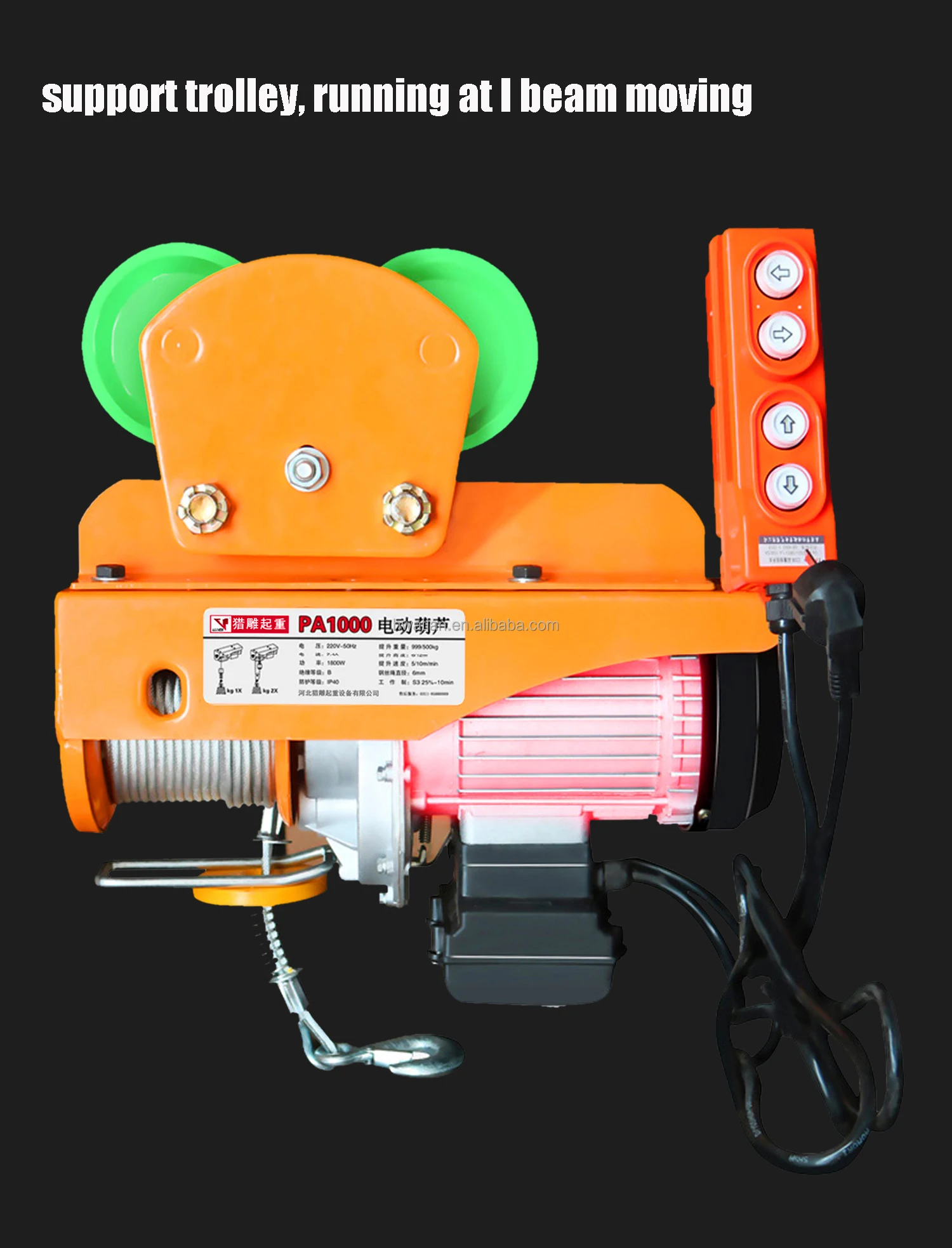

    4. remote control, simple control
    5. easy maintenance
PRODUCT SPECIFICATIONS
Model
Motor Power

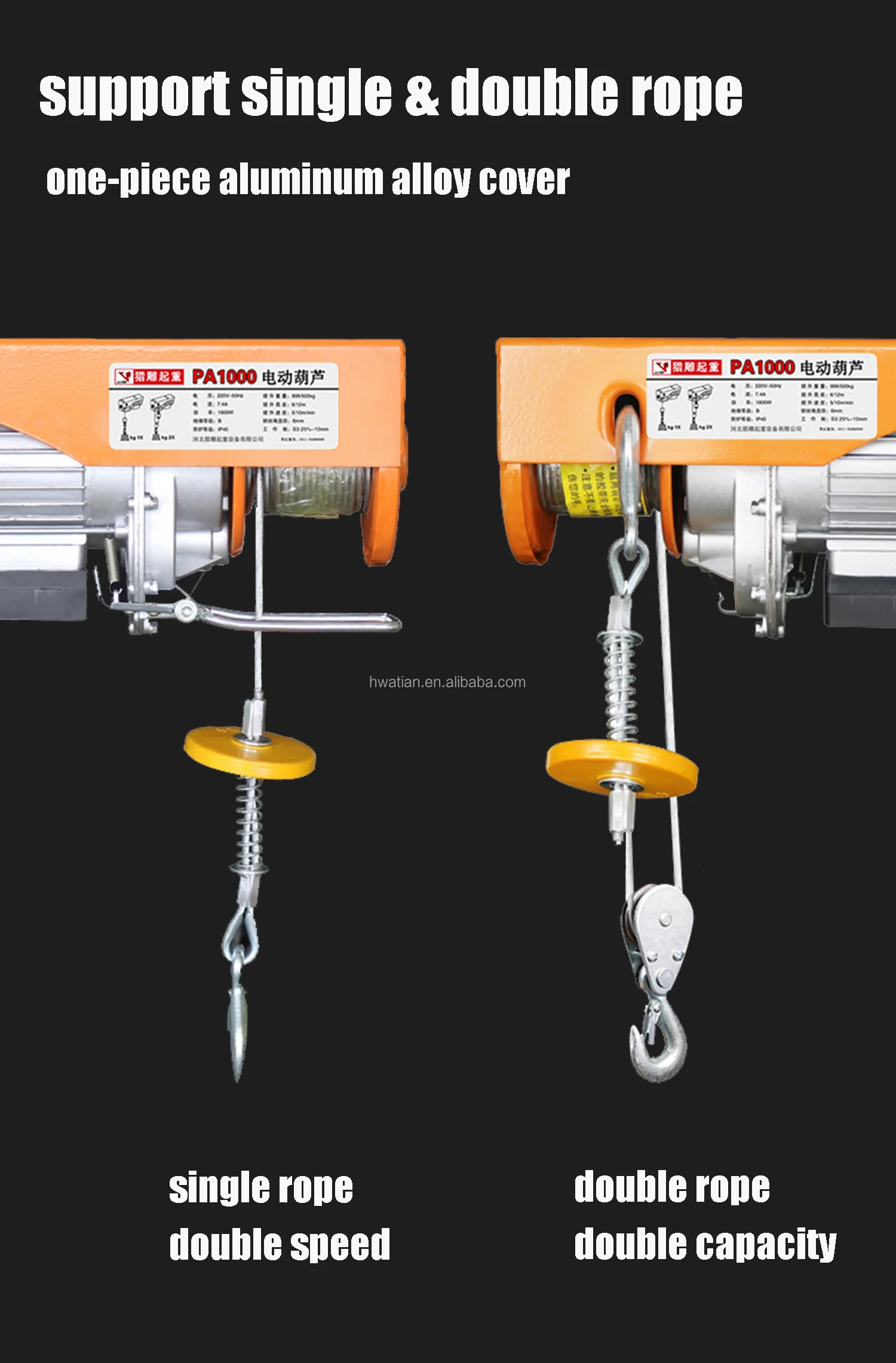

single/double rope capacity
single/double rope speed
single/double rope lifting height
wire rope diameter
wire rope length
Weight
Working time
Body size
PA200
510W
100/200 kg
10/5 m/min
6/12 m
3mm
12-30m
11kg
30min
34*13*15cm
PA300
630W
150/300 kg
10/5 m/min
6/12 m
3mm
12-30m
12kg
30min
34*13*15cm
PA400
800W
200/400 kg
10/5 m/min
6/12 m
4mm
12-30m
17kg
1-2hour
38*15*18cm
PA500
1050W
250/500 kg
10/5 m/min
6/12 m
4mm
12-30m
17.5kg
1-2hour
38*15*18cm
PA600
1200W
300/600 kg
10/5 m/min
6/12 m
4.5mm
12-30m
18kg
2-3hour
38*15*18cm
PA800
1450W
400/800 kg
10/5 m/min
6/12 m
5mm
12-30m
19kg
2-3hour
41*17*26cm
PA1000
1800W
500/1000 kg
10/5 m/min
6/12 m
6mm
12-30m
32kg
3-4hour
48*17*26cm
PA1200
2100W
600/1200 kg
10/5 m/min
6/12 m
6mm
12-30m
32kg
3-4hour
48*17*26cm

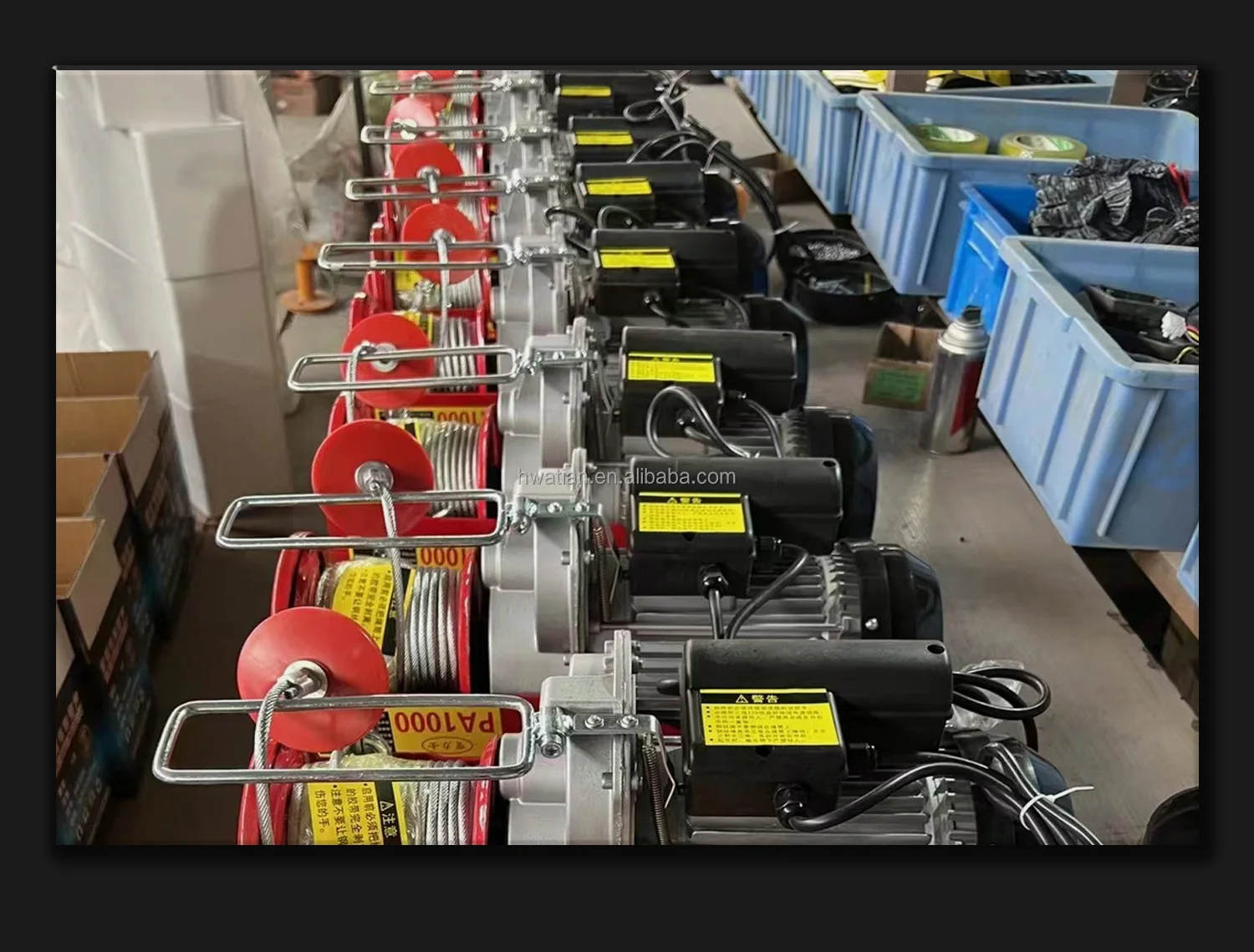

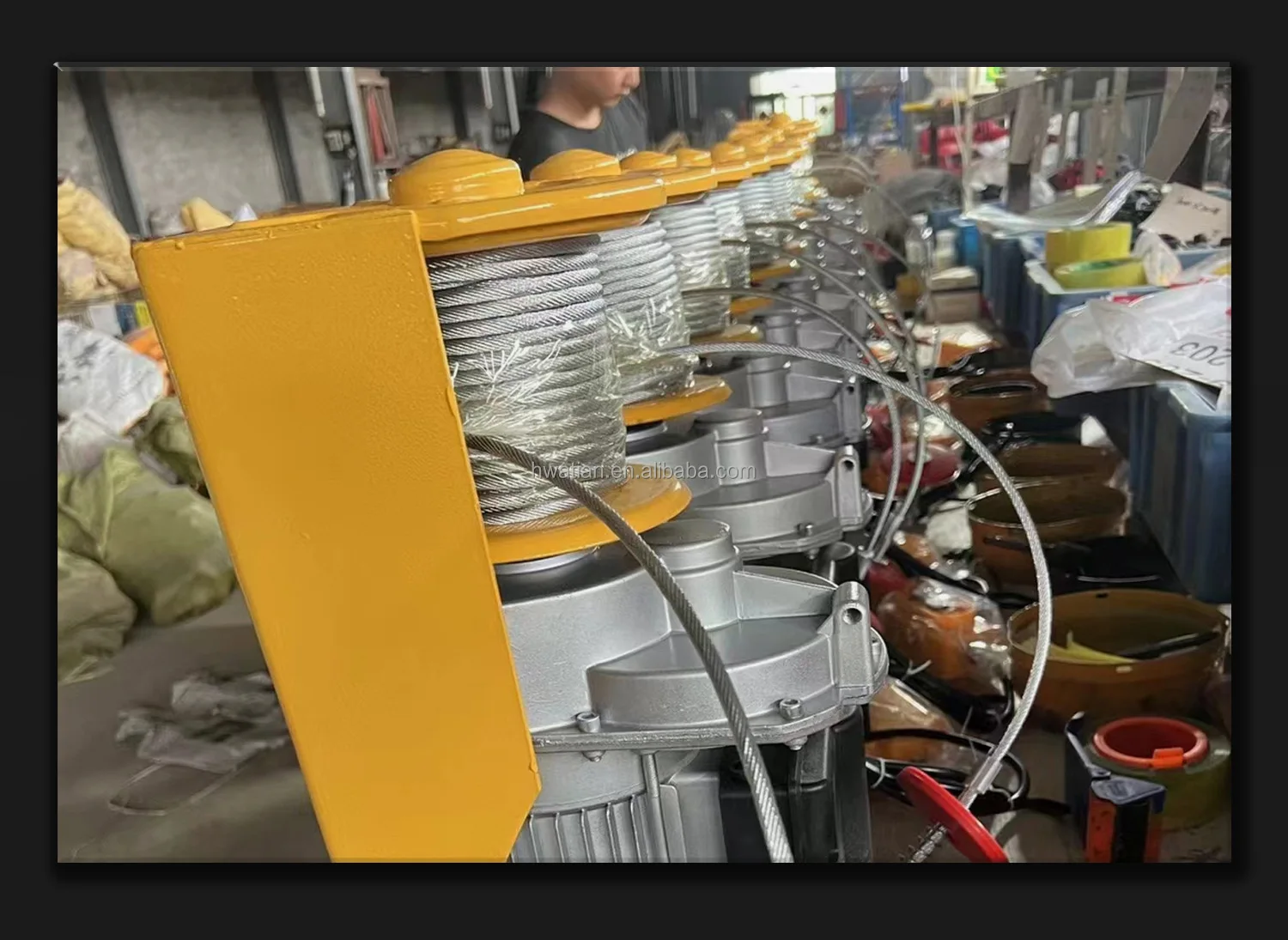

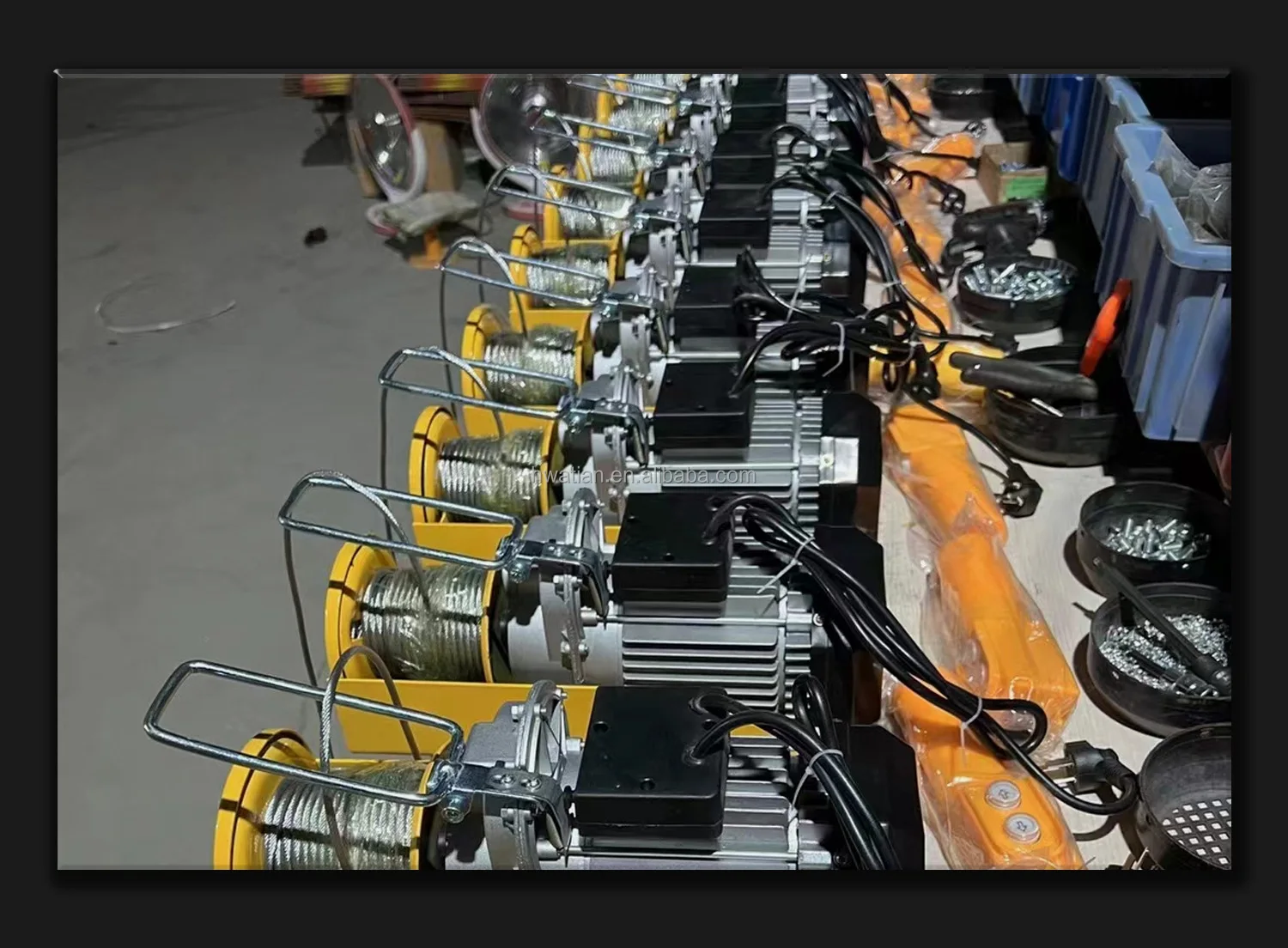

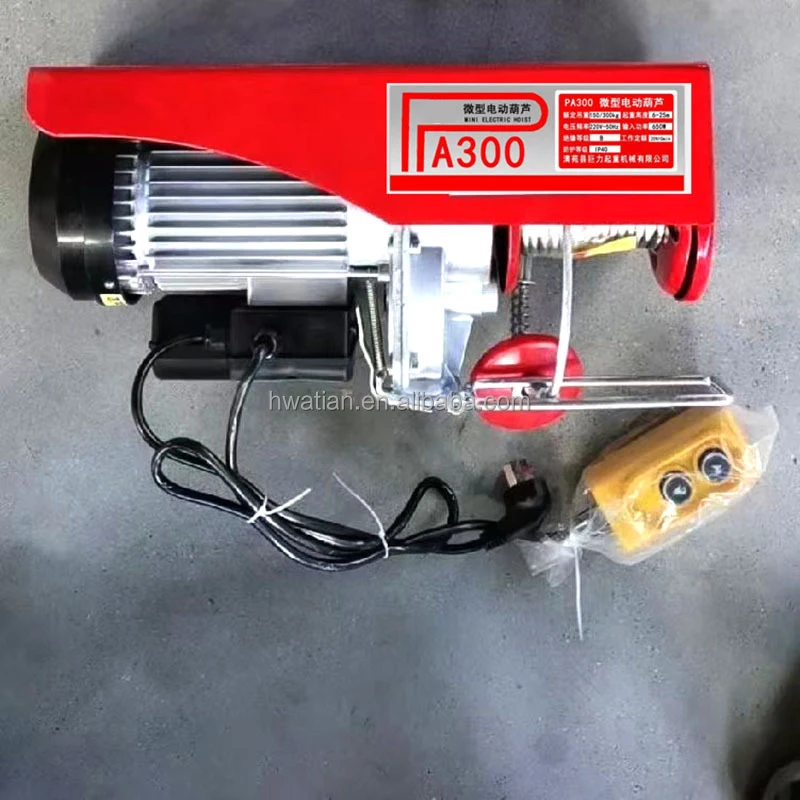

Details Images

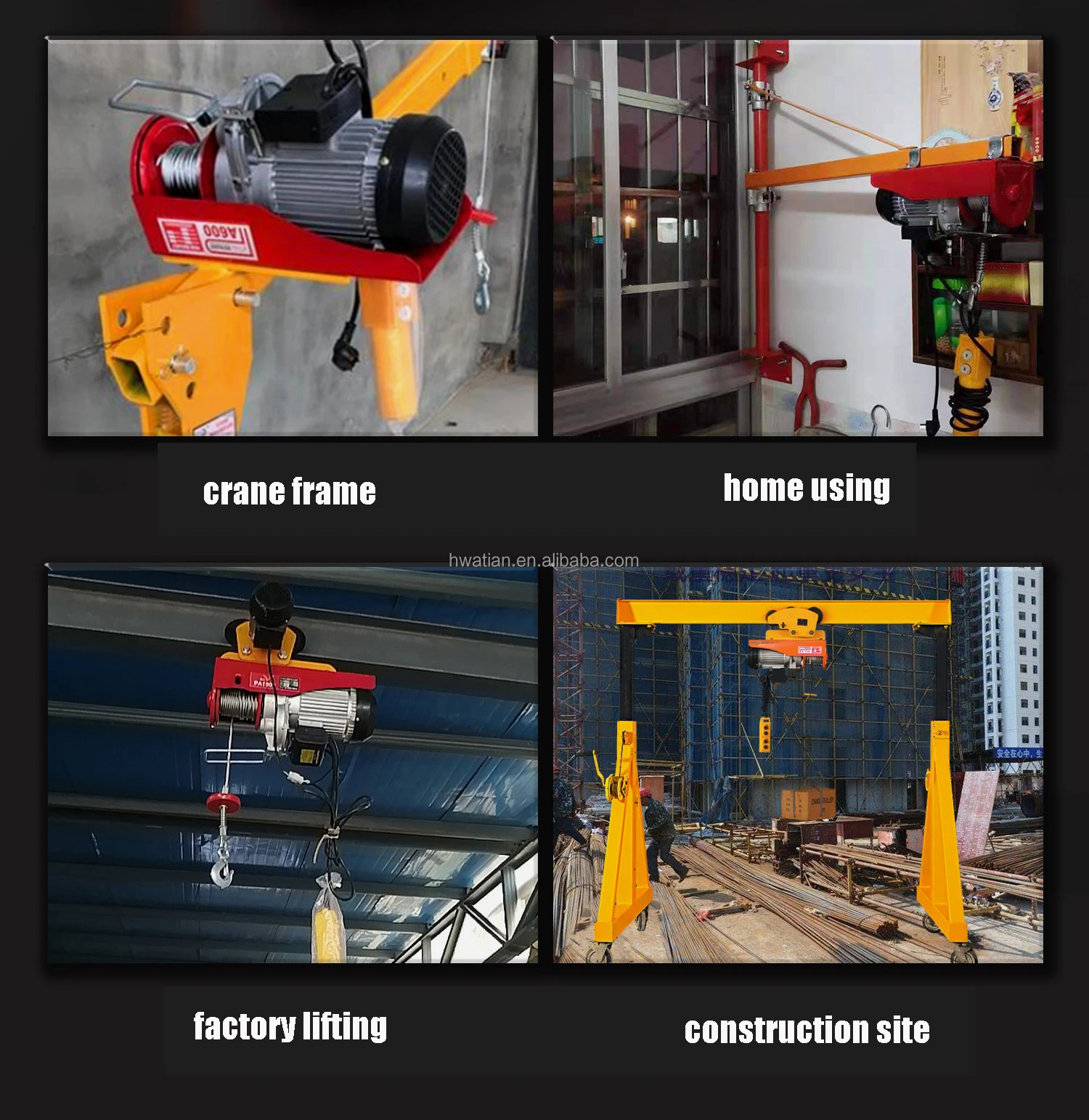

Application
